LG 56-789470-0HH IR Power Button Sensor for 65QNED93A6A QNED93 65 TV – Original

Price:

12.95 €
24/72h shipping in mainland Spain | Warranty on all stock | Top brands at outlet prices
951 20 72 22 WhatsApp
English
Categories

Appliances

Picture and sound

TV spare parts

  2. Shop
  3. LG 56-789470-0HH IR Power Button Sensor for 65QNED93A6A QNED93 65 TV – Original
LG 3PCR03583A EPLH50CF1A Local Dimming LED Driver for the 65QNED93A6A QNED93 65 TV
LG 3PCR03583A EPLH50CF1A Local Dimming LED Driver for the 65QNED93A6A QNED93 65 TV
59.95 €
59.95 €
LG LVDS Flex Cables 46-FCH066-68G03XX 46-FCH071-68G01XX TV 65QNED93A6A 65
LG LVDS Flex Cables 46-FCH066-68G03XX 46-FCH071-68G01XX TV 65QNED93A6A 65
19.95 €
19.95 €

LG 56-789470-0HH IR Power Button Sensor for 65QNED93A6A QNED93 65 TV – Original

https://multitech.es/web/image/product.template/132/image_1920?unique=3a9d32a

12.95 € 12.95 EUR
12.95 €

Compartir

Not Available For Sale

  • Grade

This combination does not exist.

LG Envio: InPost Locker
Contact Us
Tags
MULTITECH
🇪🇸 Spanish seller · Shipped from Spain in 24/48h · VAT invoice

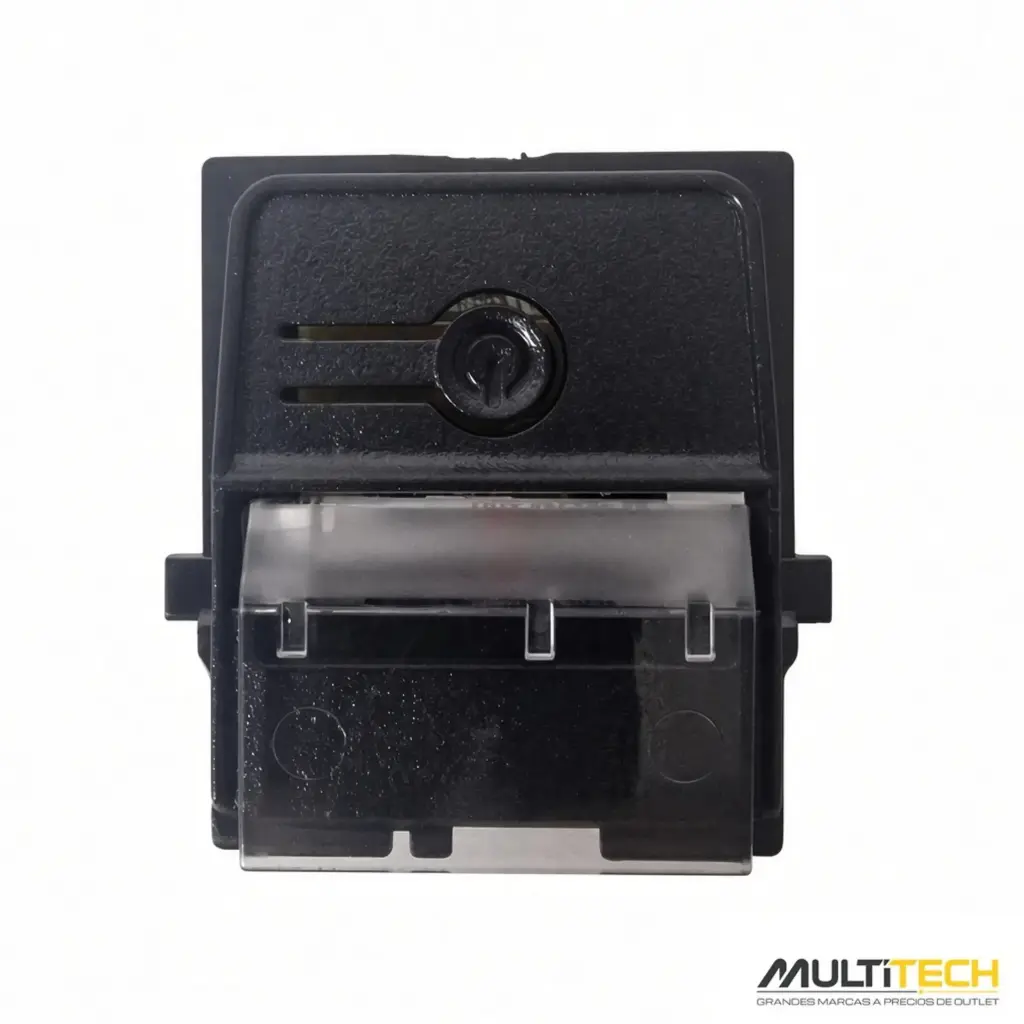

IR sensor + power button LG — 56-789470-0HH

Front assembly: IR sensor, power button and LED with diffuser → with original bracket · 10-pin FFC connector · Unused. Delivered mounted on its original bracket: protects the part during shipping and, if your TV is the model listed in the advert, fitting is straightforward — no need to unclip the board or risk damaging it during handling

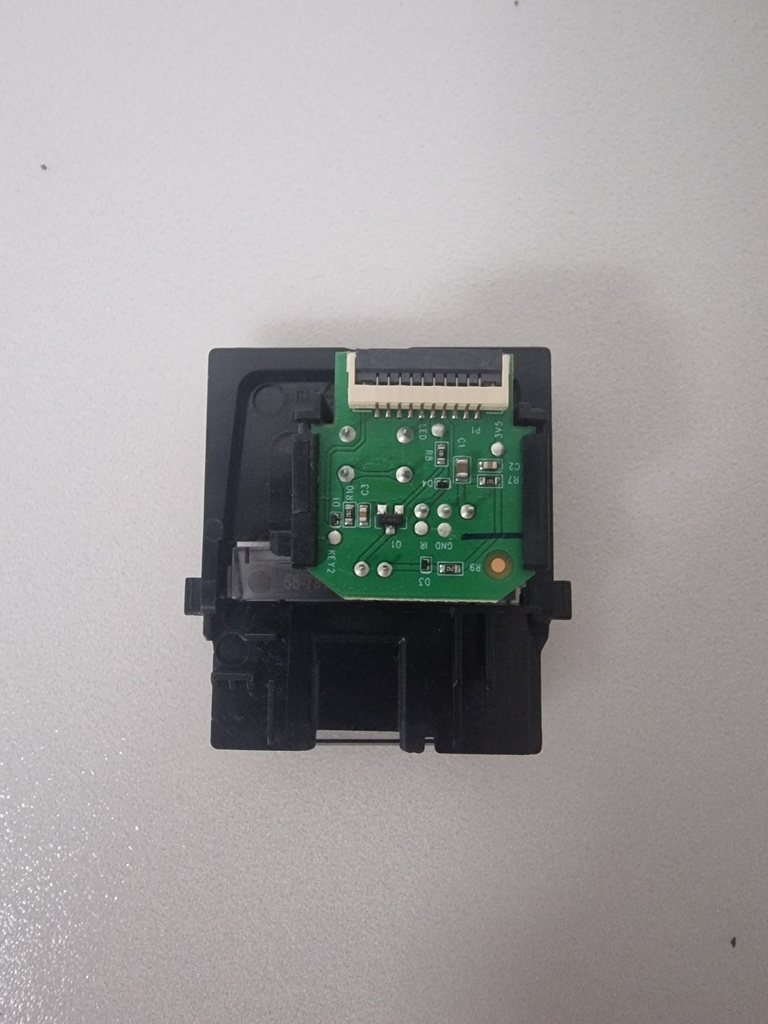

TypeFront panel board with IR receiver, power button and status LED with light guide/diffuser, mounted on original bracket with 10-pin FFC connector

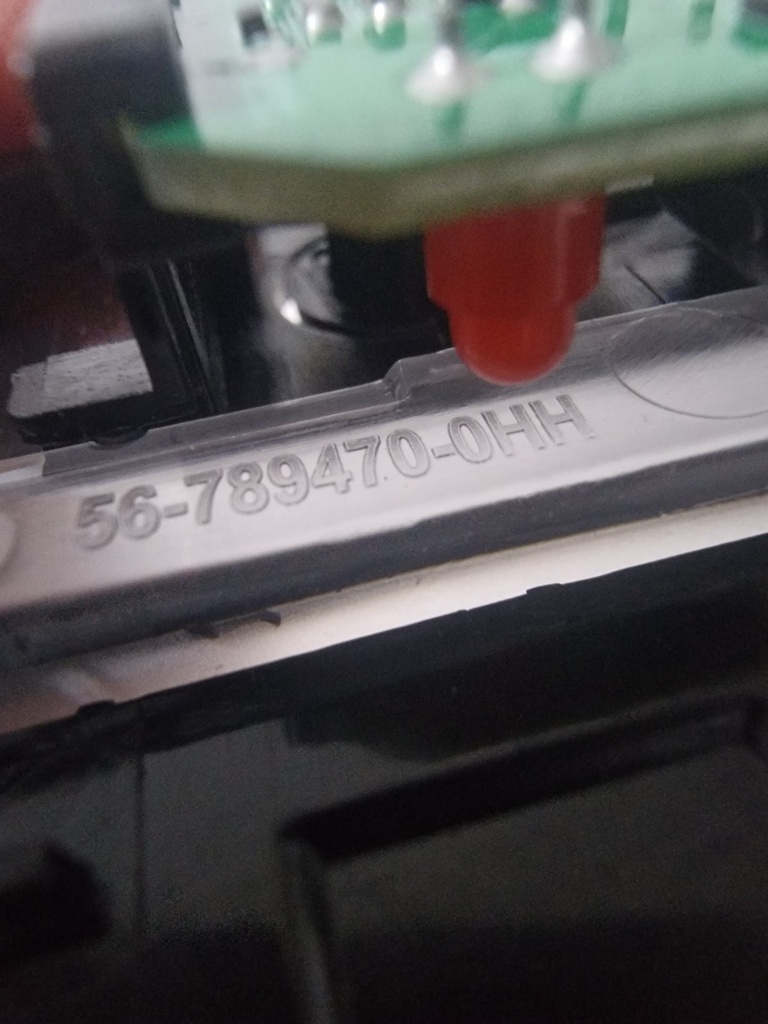

Reference56-789470-0HH (moulded on the light guide) · board with 10-pin FFC connector
Extracted fromLG 65QNED93A6A (QNED evo Mini LED 65" 2025) NEW with panel broken in transit · mfd. 09/2025 · S/N 509TAJD0N092
ConditionGRADE A — UNUSED: board, button and light guide immaculate, FFC connector perfect, bracket unmarked
✓ WHEN YOU NEED IT

TV that does not respond to the remote, a power button that does not react, or a standby LED that is off: this front assembly resolves it all in one go. Compare the moulded reference and the connector with yours before purchasing.

📦 24/48H SHIPPING
Flat and protected
with tracking		 🛡 WARRANTY
Verified part
Returns accepted		 🧾 INVOICE
Spanish company
VAT included
MULTiTECH · Marbella, Málaga (Spain) · Genuine spare parts from leading brands
🛠️ MULTITECH DIAGNOSTIC BENCH — find the culprit in 3 steps

STEP 1 — The torch test 🔦 (the one that separates a smart purchase from a return): in the dark, switch the TV on and hold a torch right up against the screen. Can you make out an image? The panel and the main board work: your problem is the backlight (LED strips, driver or the backlight stage of the power supply). No trace of an image? Keep reading.

STEP 2 — Standby light and ear 👂: is the standby LED steady, blinking or dead? Can you hear relay clicks or channel audio? Each combination points to a different suspect in the table.

STEP 3 — Find your symptom:

What your TV doesSuspect no. 1Also check
Completely dead, standby LED offPower supplyfuse, mains cable
Standby LED blinks, won't startPower supplymain board
Turns on and shuts off immediatelyPower supply (protection)main board, shorted LED strips
Sound OK, image visible only with a torchLED stripsLED driver, power supply backlight stage
Sound OK, pitch black even with a torchMain board (video circuit)T-CON, LVDS flex
Dark areas or uneven brightness by zonesLED stripsLED driver
Vertical lines or half screenT-CONpoorly seated LVDS flex
Odd colours or negative imageT-CON (gamma)LVDS flex
Poor sound: distorted, rattling or one channel silentSpeakersmain board (audio stage)
Can't find WiFi networks or Bluetooth won't pair (Magic Remote, headphones)WiFi/BT modulemodule flex cable, main board
Frozen image, artefacts, no response to the remoteMain boardfirmware
Thin horizontal lines⚠️ usually the panel (COF flex)ask us before buying

💬 Unsure about your diagnosis? Message us BEFORE buying with your TV's full model number and the symptom: we'll tell you which part you need, no obligation — we'd rather advise you for free than process a return. And if the part still doesn't fix your fault, you have 30 days to return it and get your money back (return postage paid by the buyer).

Grade Grade A
