LG 3PCR03583A EPLH50CF1A Local Dimming LED Driver for the 65QNED93A6A QNED93 65 TV

https://multitech.es/web/image/product.template/131/image_1920?unique=9c722a4

59.95 € 59.95 EUR
59.95 €

Compartir

Not Available For Sale

  • Grade

This combination does not exist.

Placas TV Driver LED LG Envio: Correos Express
Contact Us
Tags
MULTITECH
🇪🇸 Spanish seller · Shipped from Spain in 24/48h · VAT invoice

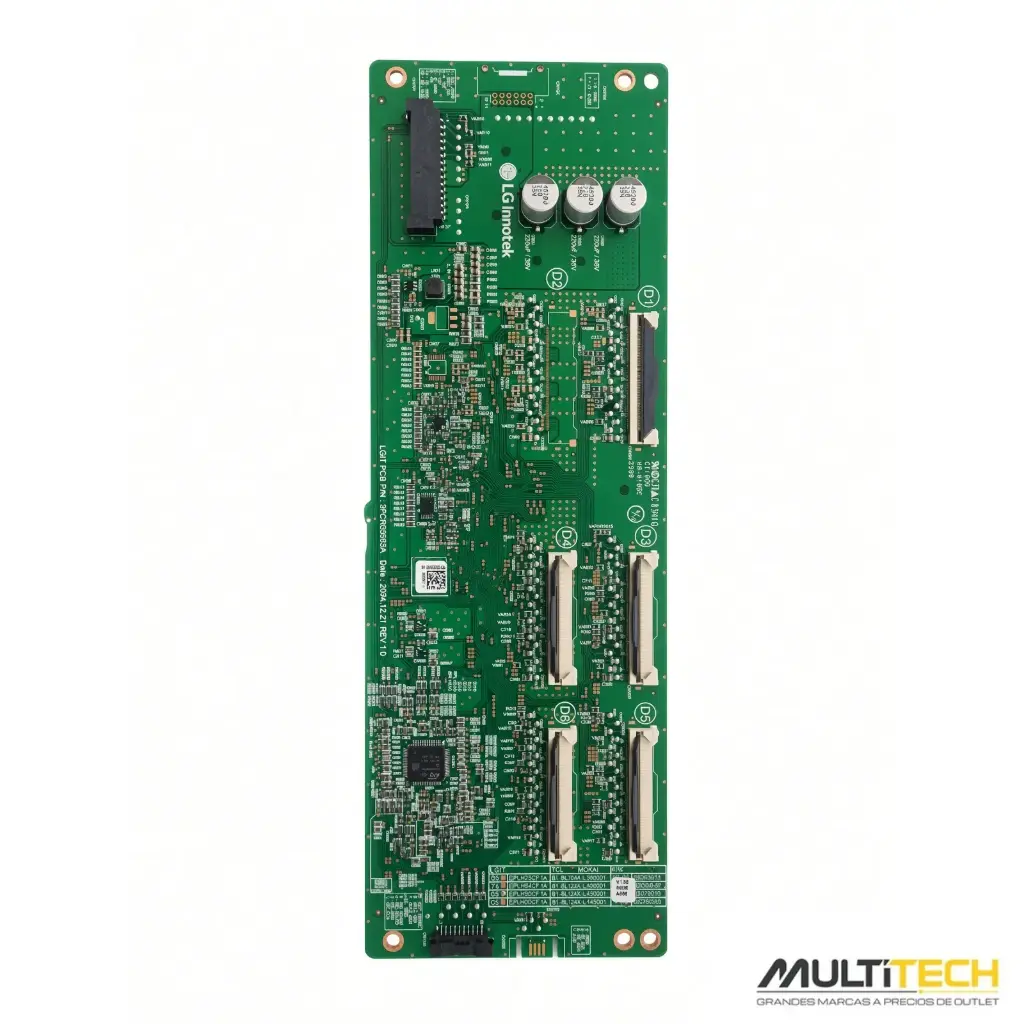

Main board driver LED (local dimming) LG 3PCR03583A — QNED93 Mini LED

LG Innotek · assembly 65" EPLH50CF1A · 6 FFC outputs to Mini LED bars

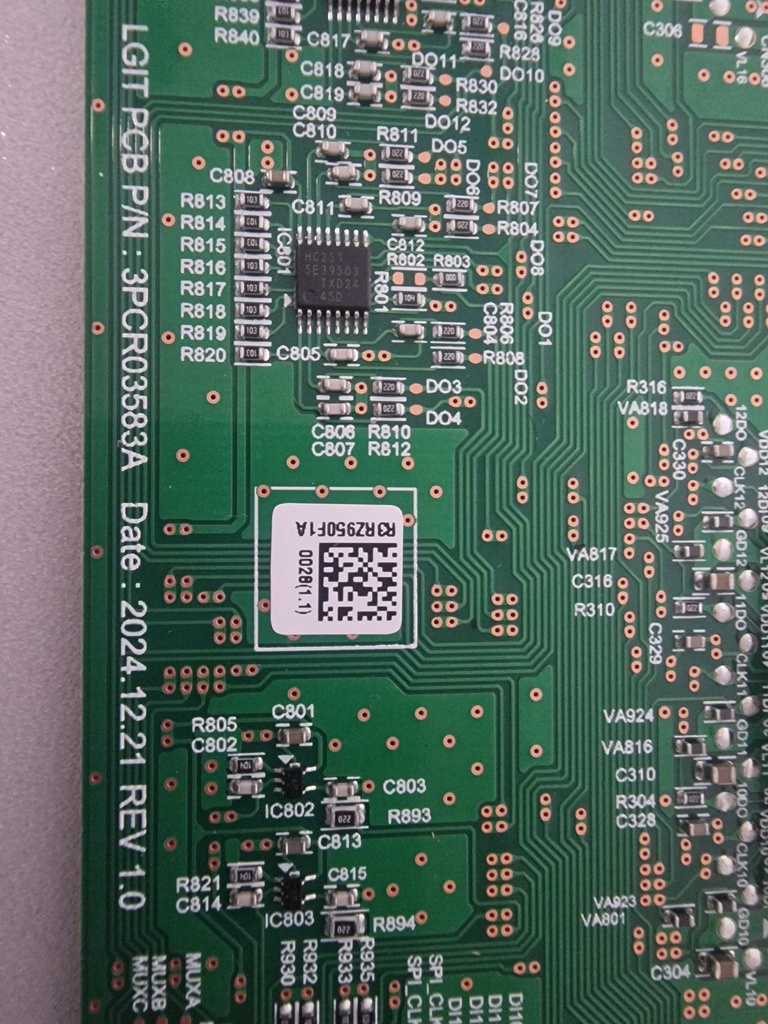

Board referenceLGIT 3PCR03583A REV 1.0 (2024.12.21) · etiqueta R3RZ950F1A 0028(1.1)
Software versionV1.03 (silkscreen marking) · CT1600 KB-6160C
ControllerMini LED zonal backlight driver (local dimming), shared LGIT platform with TCL MOKA (65": 81-BLI24X-L240001, as per silkscreen marking table)
Channels6 FFC output connectors to bars (D1-D6) + input CN101
Extracted fromLG 65QNED93A6A (QNED evo Mini LED 65", 2025) · Manufactured 09/2025 · S/N 509TAJD0N092
ConditionGRADE A — extracted from a new TV with a damaged panel, zero hours of use
✓ COMPATIBILITY

Extracted from LG 65QNED93A6A (QNED evo Mini LED 65", 2025). The 65" assembly is EPLH50CF1A according to the manufacturer's silkscreen marking table (shared platform 55/65/75/85). IMPORTANT: verify that the silkscreen marking reference on your board matches EXACTLY with the photos before purchasing. Typical symptoms of a faulty driver: dark or blacked-out areas of the image, sector-by-sector backlight flickering, uneven brightness, or TV with sound but no picture. Factory-matched to our Mini LED strips from the same donor unit (also available).

📦 24/48H SHIPPING
Anti-static packaging
and protected rigid box		 🛡 WARRANTY
Verified part
Returns accepted		 🧾 INVOICE
Spanish company
VAT included
MULTiTECH · Marbella, Málaga (Spain) · Genuine spare parts from leading brands
🛠️ MULTITECH DIAGNOSTIC BENCH — find the culprit in 3 steps

STEP 1 — The torch test 🔦 (the one that separates a smart purchase from a return): in the dark, switch the TV on and hold a torch right up against the screen. Can you make out an image? The panel and the main board work: your problem is the backlight (LED strips, driver or the backlight stage of the power supply). No trace of an image? Keep reading.

STEP 2 — Standby light and ear 👂: is the standby LED steady, blinking or dead? Can you hear relay clicks or channel audio? Each combination points to a different suspect in the table.

STEP 3 — Find your symptom:

What your TV doesSuspect no. 1Also check
Completely dead, standby LED offPower supplyfuse, mains cable
Standby LED blinks, won't startPower supplymain board
Turns on and shuts off immediatelyPower supply (protection)main board, shorted LED strips
Sound OK, image visible only with a torchLED stripsLED driver, power supply backlight stage
Sound OK, pitch black even with a torchMain board (video circuit)T-CON, LVDS flex
Dark areas or uneven brightness by zonesLED stripsLED driver
Vertical lines or half screenT-CONpoorly seated LVDS flex
Odd colours or negative imageT-CON (gamma)LVDS flex
Poor sound: distorted, rattling or one channel silentSpeakersmain board (audio stage)
Can't find WiFi networks or Bluetooth won't pair (Magic Remote, headphones)WiFi/BT modulemodule flex cable, main board
Frozen image, artefacts, no response to the remoteMain boardfirmware
Thin horizontal lines⚠️ usually the panel (COF flex)ask us before buying

💬 Unsure about your diagnosis? Message us BEFORE buying with your TV's full model number and the symptom: we'll tell you which part you need, no obligation — we'd rather advise you for free than process a return. And if the part still doesn't fix your fault, you have 30 days to return it and get your money back (return postage paid by the buyer).
