LG EAD65940103 IR375 WIFI350 OLED48C54LA C5 Original IR WiFi Flex Cable

https://multitech.es/web/image/product.template/125/image_1920?unique=9c722a4

12.95 € 12.95 EUR
12.95 €

Compartir

Not Available For Sale

  • Grade

This combination does not exist.

Cables y flex LG Envio: InPost Locker
Contact Us
Tags
MULTITECH
🇪🇸 Spanish seller · Shipped from Spain in 24/48h · VAT invoice

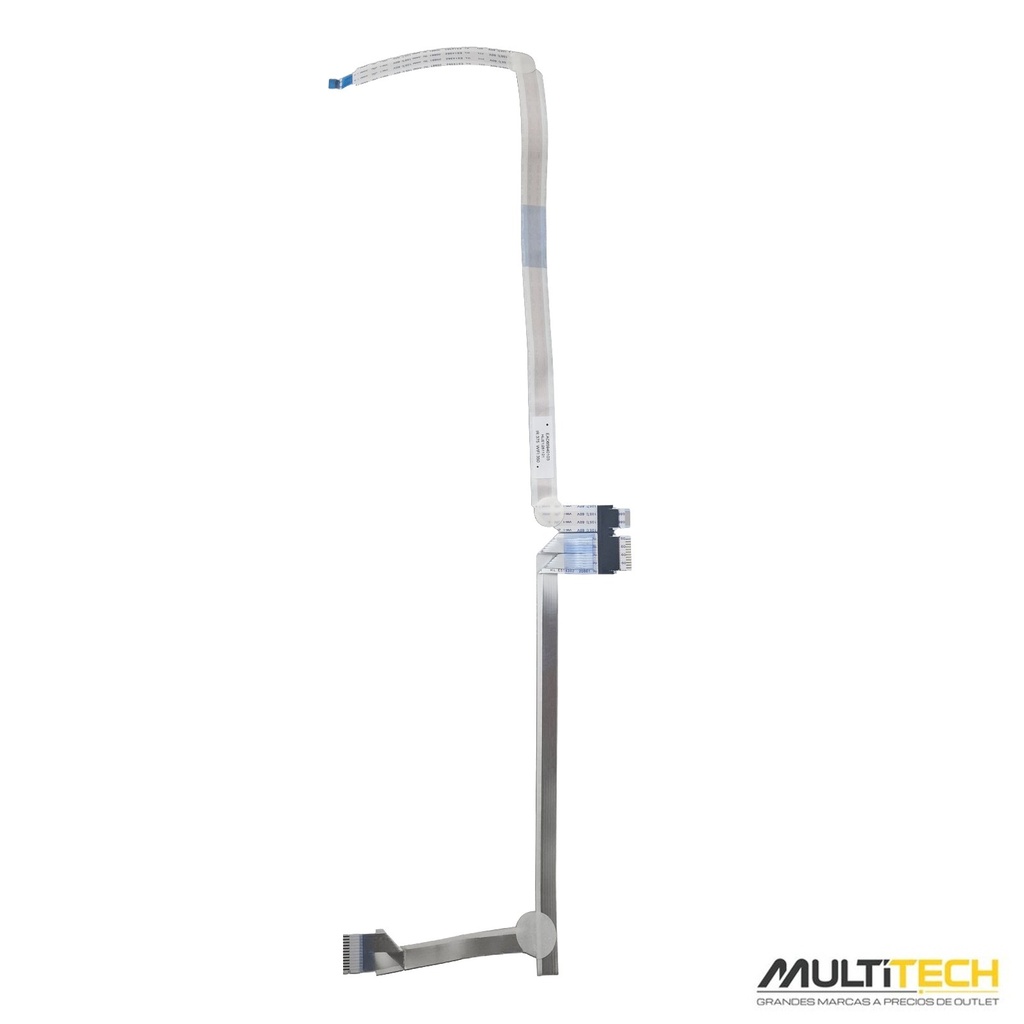

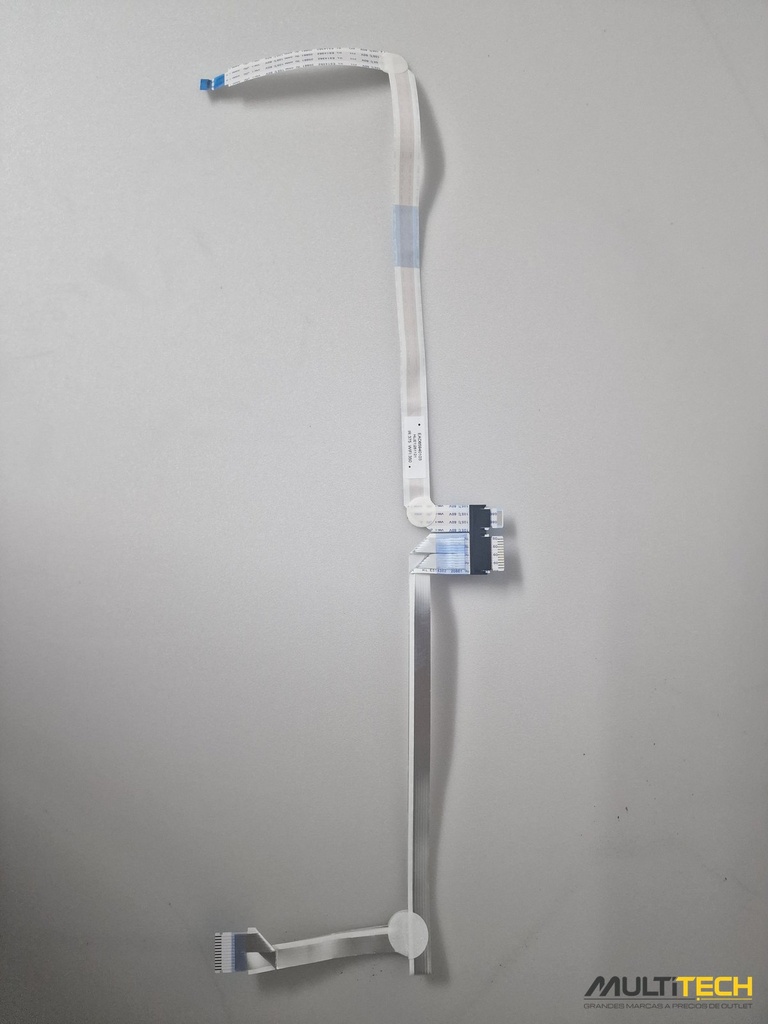

Flex cable IR + WiFi LG — EAD65940103

Branched Y flat cable: main board → IR sensor and WiFi module · IR 375 mm / WiFi 350 mm · Unused

TypeBranched FFC flex cable with connectors: IR branch 375 mm + WiFi branch 350 mm

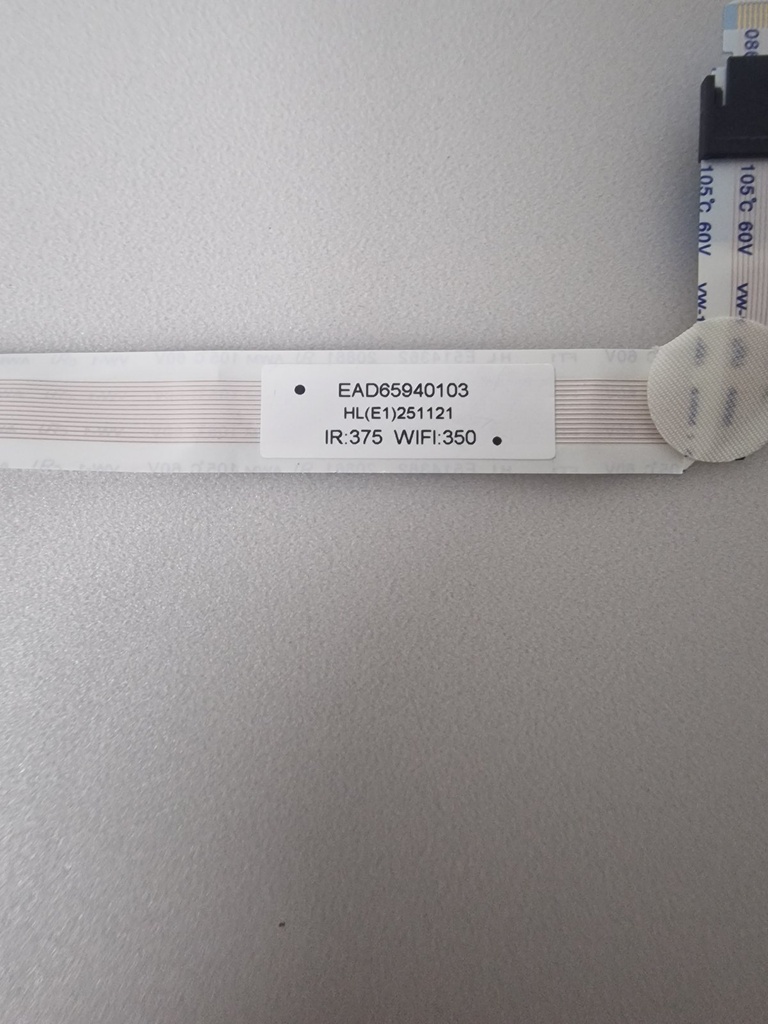

ReferenceEAD65940103 · HL(E1)251121 / IR:375 WIFI:350
Extracted fromLG OLED48C54LA (OLED evo C5 48" 2025) new with damaged panel · S/N 602MASX29870 and 602MAMB29827 (2 twin donors) and 602MAMB29827 (2 twin donors)
ConditionGRADE A — UNUSED: flex intact, no creases or tears, perfect contacts
✓ WHEN YOU NEED IT

A remote that doesn't respond when pointed at the TV, a standby LED that doesn't react or unstable WiFi coverage can be caused by this flex being damaged or pinched — and it's one of the parts that suffers most when opening the TV for repairs. Compare the printed reference and the connectors with yours before buying.

📦 24/48H SHIPPING
Flat and protected
with tracking		 🛡 WARRANTY
Verified part
Returns accepted		 🧾 INVOICE
Spanish company
VAT included
MULTiTECH · Marbella, Málaga (Spain) · Genuine spare parts from leading brands
🛠️ MULTITECH DIAGNOSTIC BENCH — find the culprit in 3 steps

STEP 1 — The torch test 🔦 (the one that separates a smart purchase from a return): in the dark, switch the TV on and hold a torch right up against the screen. Can you make out an image? The panel and the main board work: your problem is the backlight (LED strips, driver or the backlight stage of the power supply). No trace of an image? Keep reading.

STEP 2 — Standby light and ear 👂: is the standby LED steady, blinking or dead? Can you hear relay clicks or channel audio? Each combination points to a different suspect in the table.

STEP 3 — Find your symptom:

What your TV doesSuspect no. 1Also check
Completely dead, standby LED offPower supplyfuse, mains cable
Standby LED blinks, won't startPower supplymain board
Turns on and shuts off immediatelyPower supply (protection)main board, shorted LED strips
Sound OK, image visible only with a torchLED stripsLED driver, power supply backlight stage
Sound OK, pitch black even with a torchMain board (video circuit)T-CON, LVDS flex
Dark areas or uneven brightness by zonesLED stripsLED driver
Vertical lines or half screenT-CONpoorly seated LVDS flex
Odd colours or negative imageT-CON (gamma)LVDS flex
Poor sound: distorted, rattling or one channel silentSpeakersmain board (audio stage)
Can't find WiFi networks or Bluetooth won't pair (Magic Remote, headphones)WiFi/BT modulemodule flex cable, main board
Frozen image, artefacts, no response to the remoteMain boardfirmware
Thin horizontal lines⚠️ usually the panel (COF flex)ask us before buying

💬 Unsure about your diagnosis? Message us BEFORE buying with your TV's full model number and the symptom: we'll tell you which part you need, no obligation — we'd rather advise you for free than process a return. And if the part still doesn't fix your fault, you have 30 days to return it and get your money back (return postage paid by the buyer).
