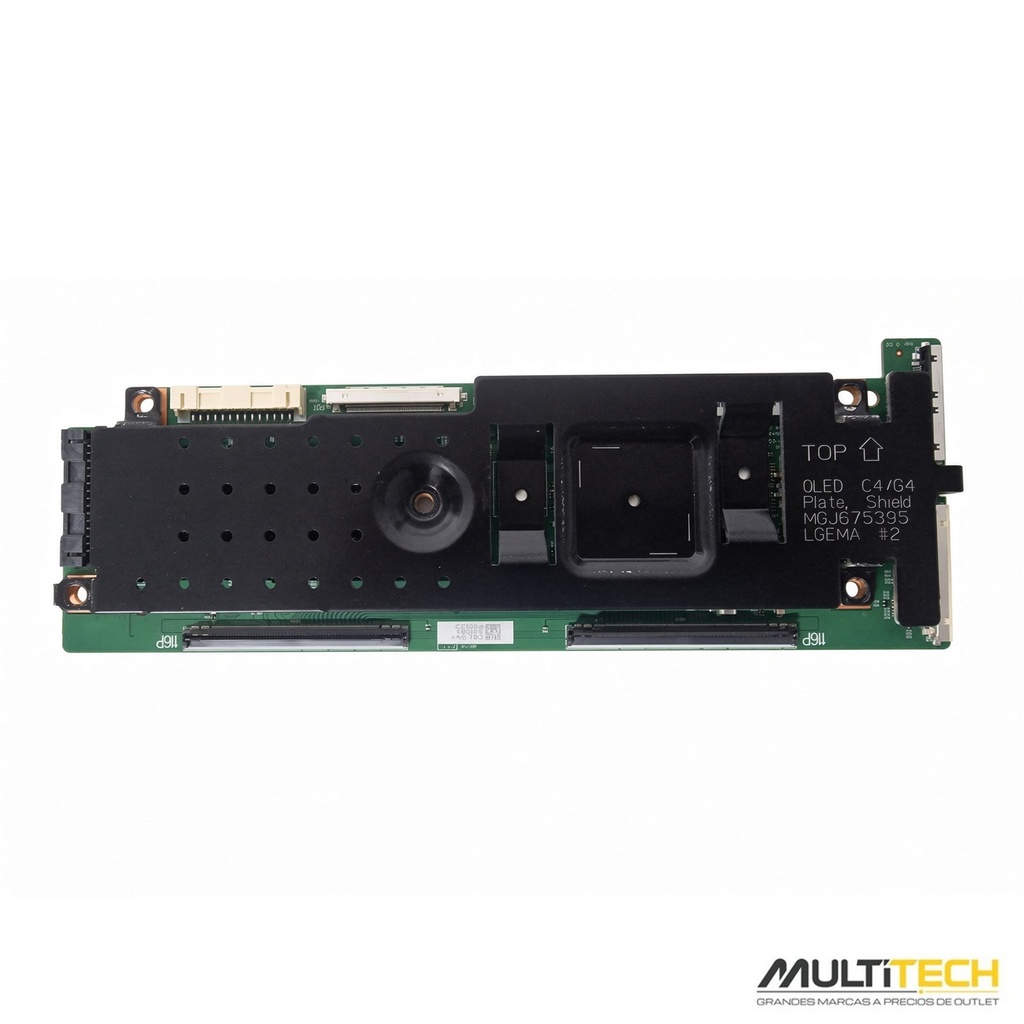

T-CON LG DBL34Y 8010E1 116P OLED48C54LA C5 OLED evo 48 2025 Original Panel

https://multitech.es/web/image/product.template/121/image_1920?unique=37437d9

49.95 € 49.95 EUR
49.95 €

Compartir

Not Available For Sale

  • Grade

This combination does not exist.

LG T-CON Para piezas Envio: Correos Express
Contact Us
Tags
MULTITECH
🇪🇸 Spanish seller · Shipped from Spain in 24/48h · VAT invoice

T-CON LG OLED 48 C4-C5 — extracted from NEW TV with damaged panel

Board "116P Ver 0.52" · Label DBL34Y / 8010E1 · With shield MGJ675395

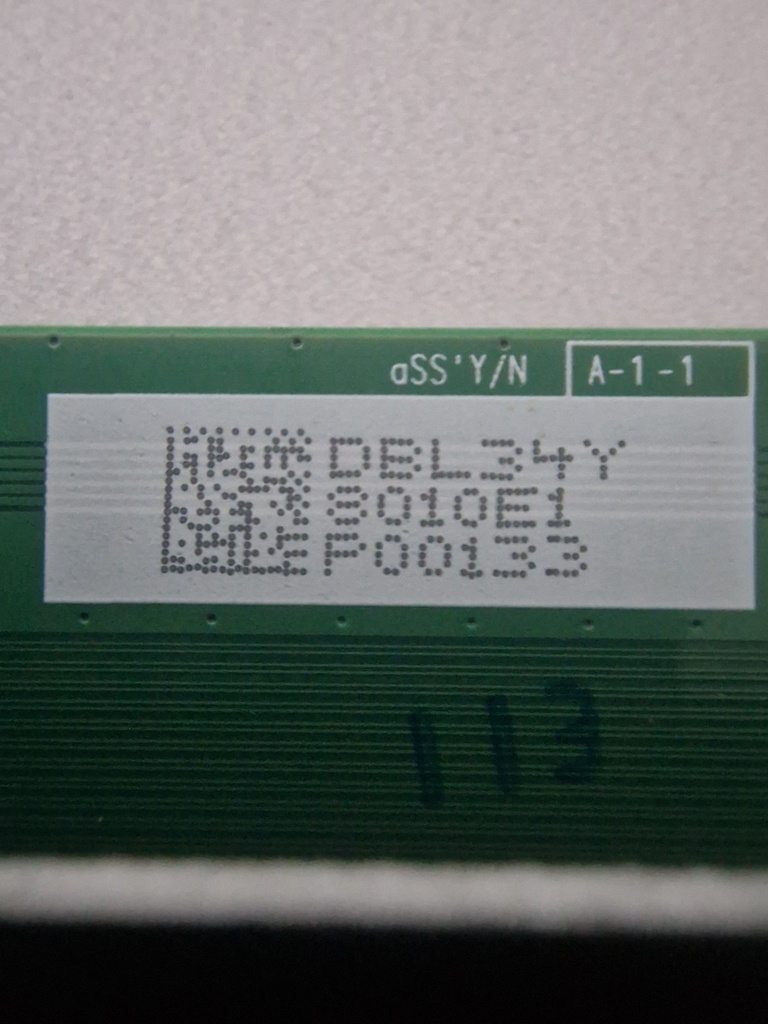

IdentificationSilkscreen marking "116P Ver 0.52" · label DBL34Y / 8010E1 / P00133 (ASS'Y A-1-1) (see photos)

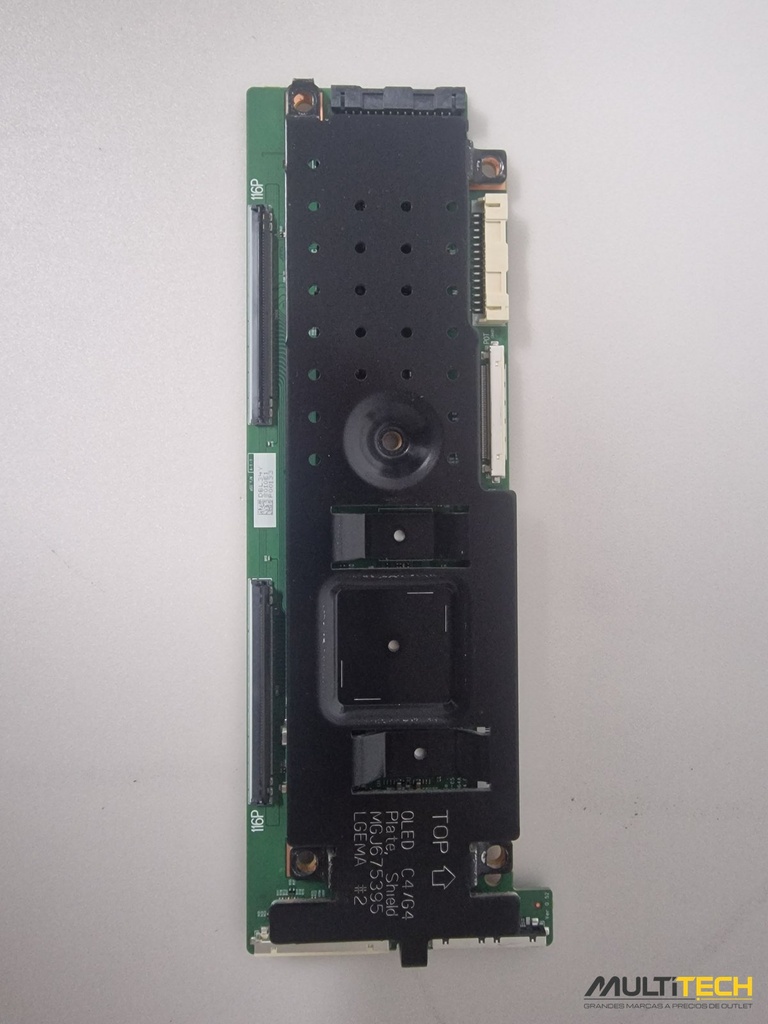

IncludesOriginal metal shield "OLED65/77G4 Plate Shield" MGJ675395
Extracted fromLG OLED48C54LA (OLED evo C5 48" 2025, mfd. 02/2026) · NEW TV with protective plastics, panel broken by physical IMPACT in transit — the electronics were not involved in the fault · S/N 602MASX29870
Physical conditionGRADE A — ZERO HOURS OF USE. TESTED AND WORKING: the donor TV was powered on and verified working correctly before extraction — only the panel was broken by the impact in transit. 100% functional part
✓ COMPATIBILITY

Shield and main board shared across the OLED C4/C5 range per shield "C4/G4" per manufacturer's silkscreen marking. A sister variant DBL32Y exists (sold separately); compare the silkscreen marking "116P Ver 0.52" and the label with those on your board, or send us your TV's model and version and we will confirm with no obligation.

📦 24/48H SHIPPING
Anti-static packaging
and protected rigid box		 🛡 WARRANTY
Physically verified part
Returns accepted		 🧾 INVOICE
Spanish company
VAT included
MULTiTECH · Marbella, Málaga (Spain) · Genuine spare parts from leading brands
🛠️ MULTITECH DIAGNOSTIC BENCH — find the culprit in 3 steps

STEP 1 — The torch test 🔦 (the one that separates a smart purchase from a return): in the dark, switch the TV on and hold a torch right up against the screen. Can you make out an image? The panel and the main board work: your problem is the backlight (LED strips, driver or the backlight stage of the power supply). No trace of an image? Keep reading.

STEP 2 — Standby light and ear 👂: is the standby LED steady, blinking or dead? Can you hear relay clicks or channel audio? Each combination points to a different suspect in the table.

STEP 3 — Find your symptom:

What your TV doesSuspect no. 1Also check
Completely dead, standby LED offPower supplyfuse, mains cable
Standby LED blinks, won't startPower supplymain board
Turns on and shuts off immediatelyPower supply (protection)main board, shorted LED strips
Sound OK, image visible only with a torchLED stripsLED driver, power supply backlight stage
Sound OK, pitch black even with a torchMain board (video circuit)T-CON, LVDS flex
Dark areas or uneven brightness by zonesLED stripsLED driver
Vertical lines or half screenT-CONpoorly seated LVDS flex
Odd colours or negative imageT-CON (gamma)LVDS flex
Poor sound: distorted, rattling or one channel silentSpeakersmain board (audio stage)
Can't find WiFi networks or Bluetooth won't pair (Magic Remote, headphones)WiFi/BT modulemodule flex cable, main board
Frozen image, artefacts, no response to the remoteMain boardfirmware
Thin horizontal lines⚠️ usually the panel (COF flex)ask us before buying

💬 Unsure about your diagnosis? Message us BEFORE buying with your TV's full model number and the symptom: we'll tell you which part you need, no obligation — we'd rather advise you for free than process a return. And if the part still doesn't fix your fault, you have 30 days to return it and get your money back (return postage paid by the buyer).
