LG EAX70302603 1.0 Mainboard for 55QNED85A6C QNED85 55 2026 Original

Price:

89.95 €
24/72h shipping in mainland Spain | Warranty on all stock | Top brands at outlet prices
951 20 72 22 WhatsApp
English
Categories

Appliances

Picture and sound

TV spare parts

  2. Shop
  3. LG EAX70302603 1.0 Mainboard for 55QNED85A6C QNED85 55 2026 Original
LG EAD65825870 IR WiFi Flex Cable for 55QNED85A6C QNED85 55 2026 TV – Original
LG EAD65825870 IR WiFi Flex Cable for 55QNED85A6C QNED85 55 2026 TV – Original
14.95 €
14.95 €
LG EAB65831201 EAB65831202 Speakers (L/R pair) 6 ohms 10/14W for TV 55QNED85A6C QNED85
LG EAB65831201 EAB65831202 Speakers (L/R pair) 6 ohms 10/14W for TV 55QNED85A6C QNED85
24.95 €
24.95 €

LG EAX70302603 1.0 Mainboard for 55QNED85A6C QNED85 55 2026 Original

https://multitech.es/web/image/product.template/195/image_1920?unique=de46a8d

89.95 € 89.95 EUR
89.95 €

Compartir

Not Available For Sale

This combination does not exist.

Ask us for real photosOn WhatsApp, before you buy
30-day returnsIf it doesn't fit, send it back
Come and see itSan Pedro de Alcántara (Marbella)
24/72h shippingInsurance included
Envio: Correos Express Envío: Repuesto grande
Contact Us
Tags
MULTITECH
🇪🇸 Spanish seller · Shipped from Spain in 24/48h · VAT invoice

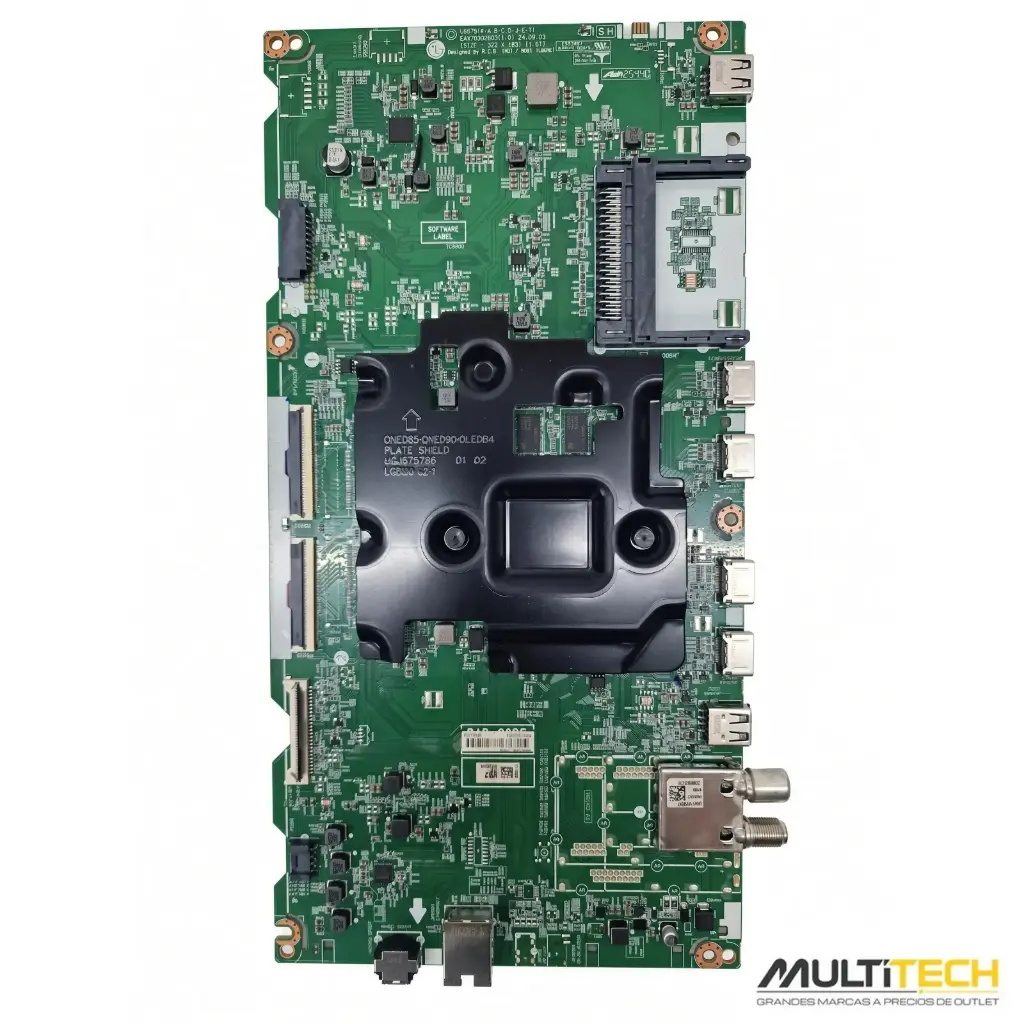

Main board LG QNED evo — 55QNED85A6C (QNED85, 2026)

Design EAX70302603(1.0) · chassis U#57B · QNED evo 2026 series · LVDS output to panel · GRADE A with zero hours of use

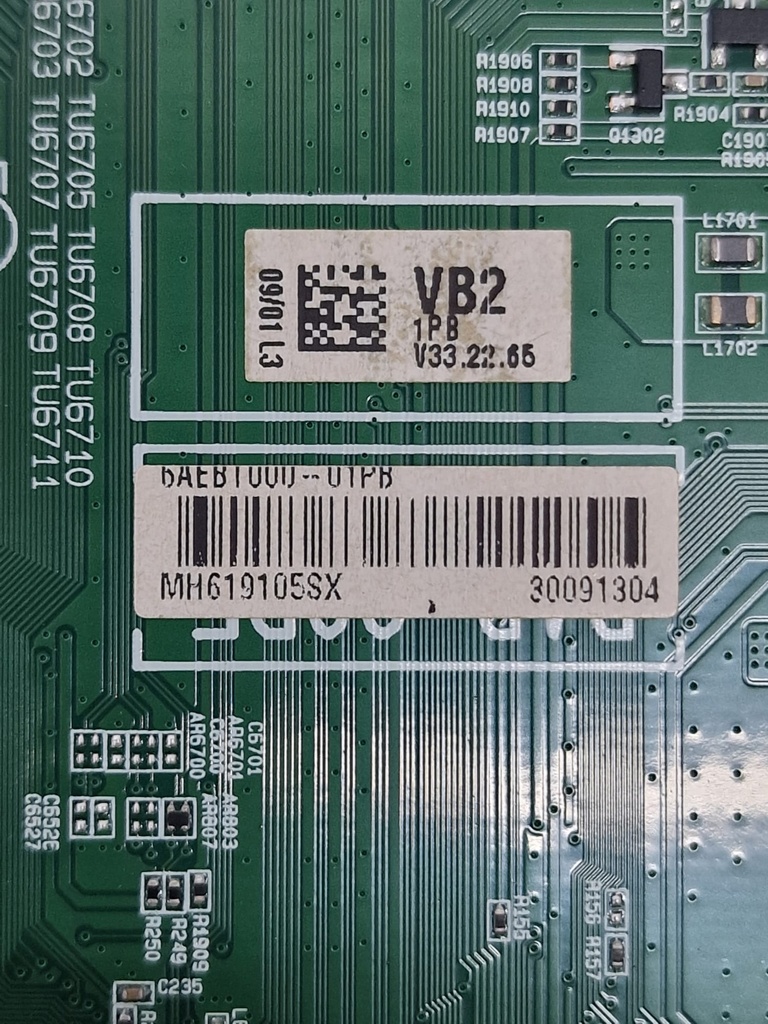

Board designEAX70302603(1.0) · label 6AEBT000-01PB · MH619105SX · 30091304 · WiFi/BT module NOT included
FirmwareV33.22.65 · code VB2 / 1PB · label 09/01 L3 (see photos)

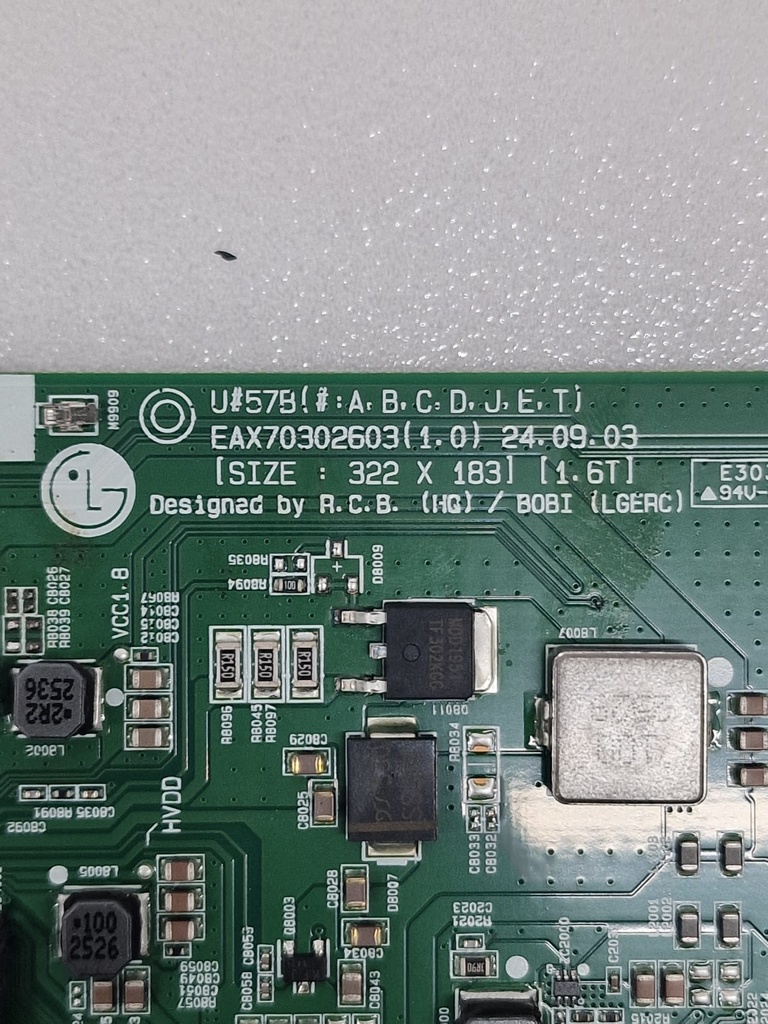

ManufactureChassis U#57B (variants A/B/C/D/J/E/T) · design 24.09.03 · dimensions 322 x 183 mm (1.6T) · R.C.B (HQ) / BOBI (LGERC)
Connectivity4x HDMI 2.1 , 2x USB, LAN, satellite/terrestrial tuner, CI+

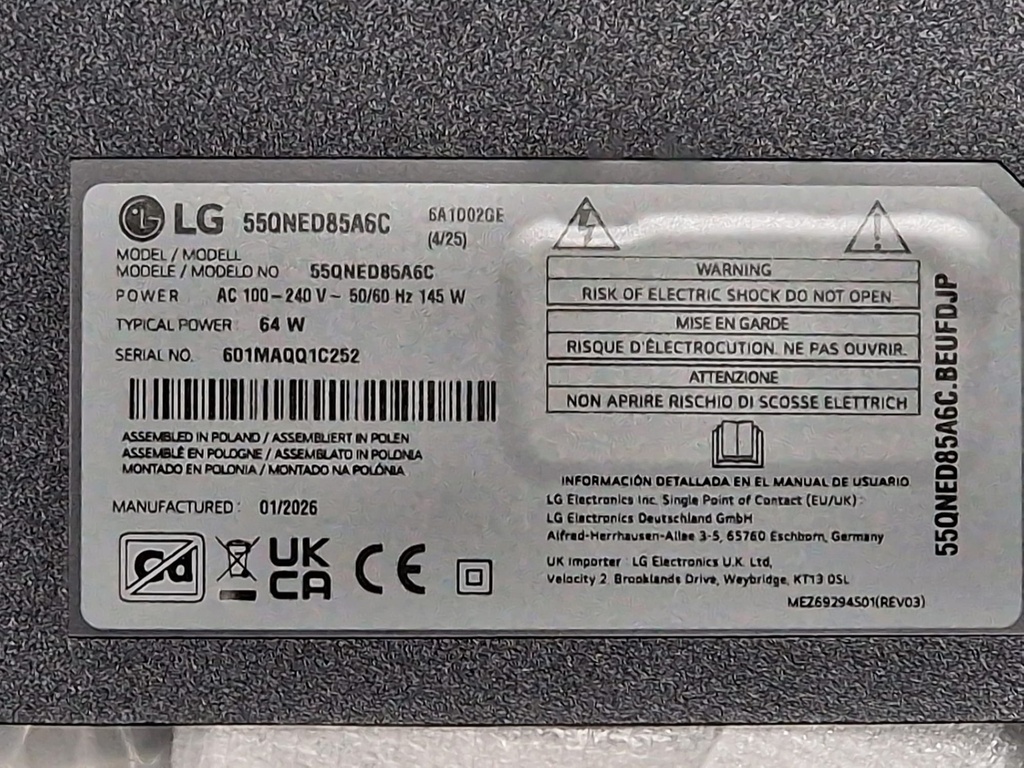

Extracted fromLG 55QNED85A6C (QNED evo 55", 2026) · Manufactured 01/2026 · S/N 601MAQQ1C252
ConditionGRADE A — ZERO HOURS OF USE: from a new TV with panel damaged in transit, verified
✓ COMPATIBILITY

The EAX70302603(1.0) design is common to the QNED85 2026 range in 55" and 65". Important: the firmware is paired to the panel size — this unit is extracted from a 55" and carries V33.22.65 (label 1PB). LG matches the main board by part number and firmware: compare the EAX number and the label on your board with the photos, or message us via the eBay messaging system stating the full model of your TV (rear label) and we will confirm compatibility before you buy.

📦 24/48H SHIPPING
Anti-static packaging
and protected rigid box		 🛡 WARRANTY
Verified part
Returns accepted		 🧾 INVOICE
Spanish company
VAT included
MULTiTECH · Marbella, Málaga (Spain) · Genuine spare parts from leading brands
🛠️ MULTITECH DIAGNOSTIC BENCH — find the culprit in 3 steps

STEP 1 — The torch test 🔦 (the one that separates a smart purchase from a return): in the dark, switch the TV on and hold a torch right up against the screen. Can you make out an image? The panel and the main board work: your problem is the backlight (LED strips, driver or the backlight stage of the power supply). No trace of an image? Keep reading.

STEP 2 — Standby light and ear 👂: is the standby LED steady, blinking or dead? Can you hear relay clicks or channel audio? Each combination points to a different suspect in the table.

STEP 3 — Find your symptom:

What your TV doesSuspect no. 1Also check
Completely dead, standby LED offPower supplyfuse, mains cable
Standby LED blinks, won't startPower supplymain board
Turns on and shuts off immediatelyPower supply (protection)main board, shorted LED strips
Sound OK, image visible only with a torchLED stripsLED driver, power supply backlight stage
Sound OK, pitch black even with a torchMain board (video circuit)T-CON, LVDS flex
Dark areas or uneven brightness by zonesLED stripsLED driver
Vertical lines or half screenT-CONpoorly seated LVDS flex
Odd colours or negative imageT-CON (gamma)LVDS flex
Poor sound: distorted, rattling or one channel silentSpeakersmain board (audio stage)
Can't find WiFi networks or Bluetooth won't pair (Magic Remote, headphones)WiFi/BT modulemodule flex cable, main board
Frozen image, artefacts, no response to the remoteMain boardfirmware
Thin horizontal lines⚠️ usually the panel (COF flex)ask us before buying

💬 Unsure about your diagnosis? Message us BEFORE buying with your TV's full model number and the symptom: we'll tell you which part you need, no obligation — we'd rather advise you for free than process a return. And if the part still doesn't fix your fault, you have 30 days to return it and get your money back (return postage paid by the buyer).
