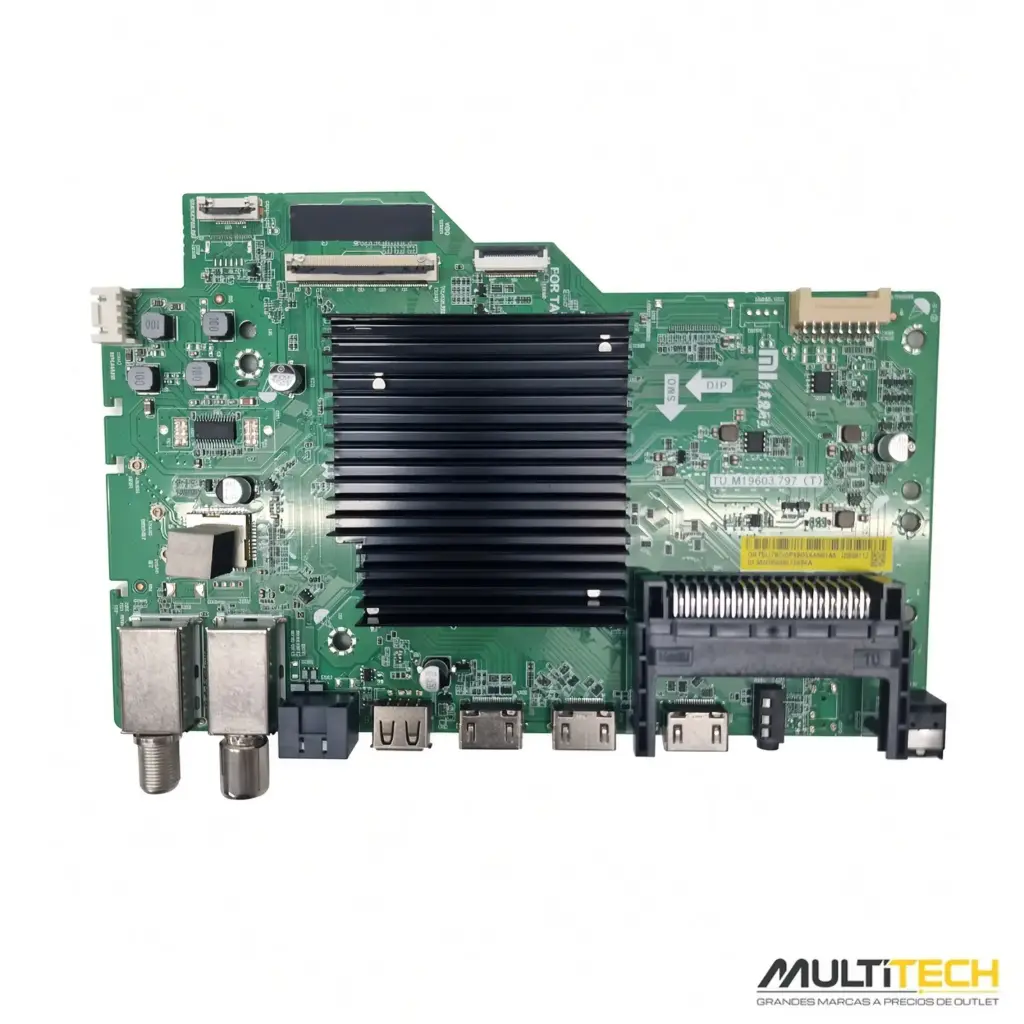

Main board Xiaomi TD.MT9603.797(T) — L75MB-FPEU extracted from NEW TV

Design TD.MT9603.797(T) · SoC MediaTek MT9603 · GRADE A ZERO HOURS OF USE

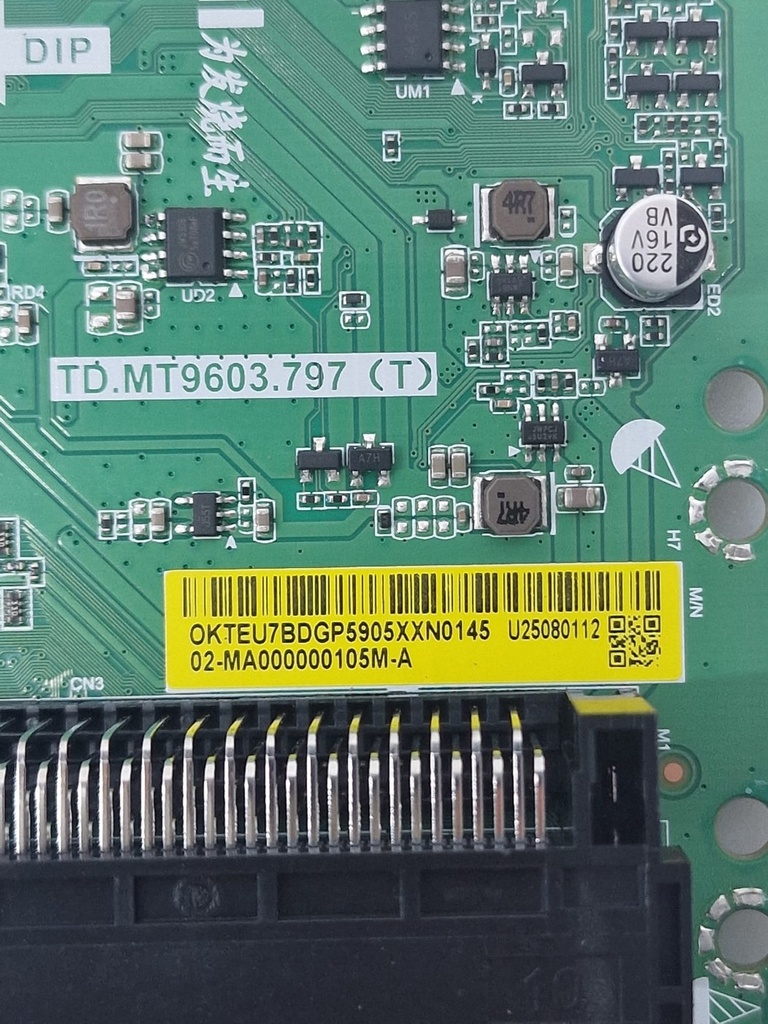

IdentificationSilkscreen marking TD.MT9603.797(T) · sub-reference 02-MA000000105M-A · label OKTEU7BDGP5905XXN0145 · batch U25080112 · PCB P1691 (see photos)

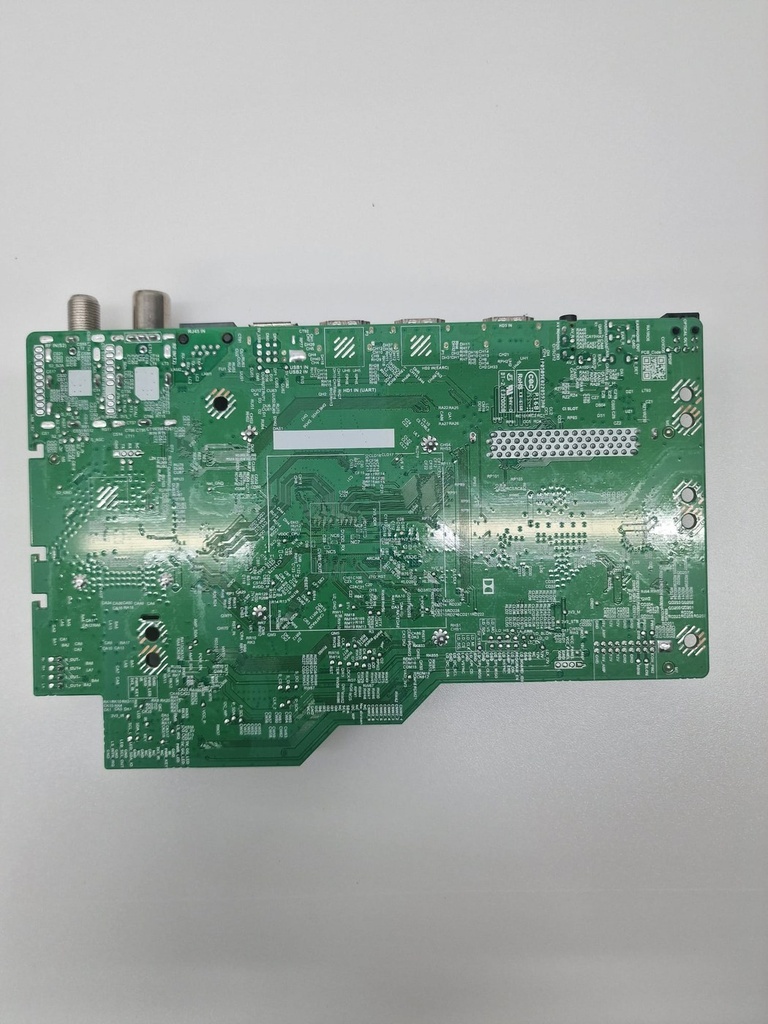

IncludesComplete main board with satellite and terrestrial tuners, CI+ slot, 3x HDMI (one with eARC), 2x USB, RJ45 LAN, optical output and headphone output · WiFi/BT module NOT included (located on a separate board)

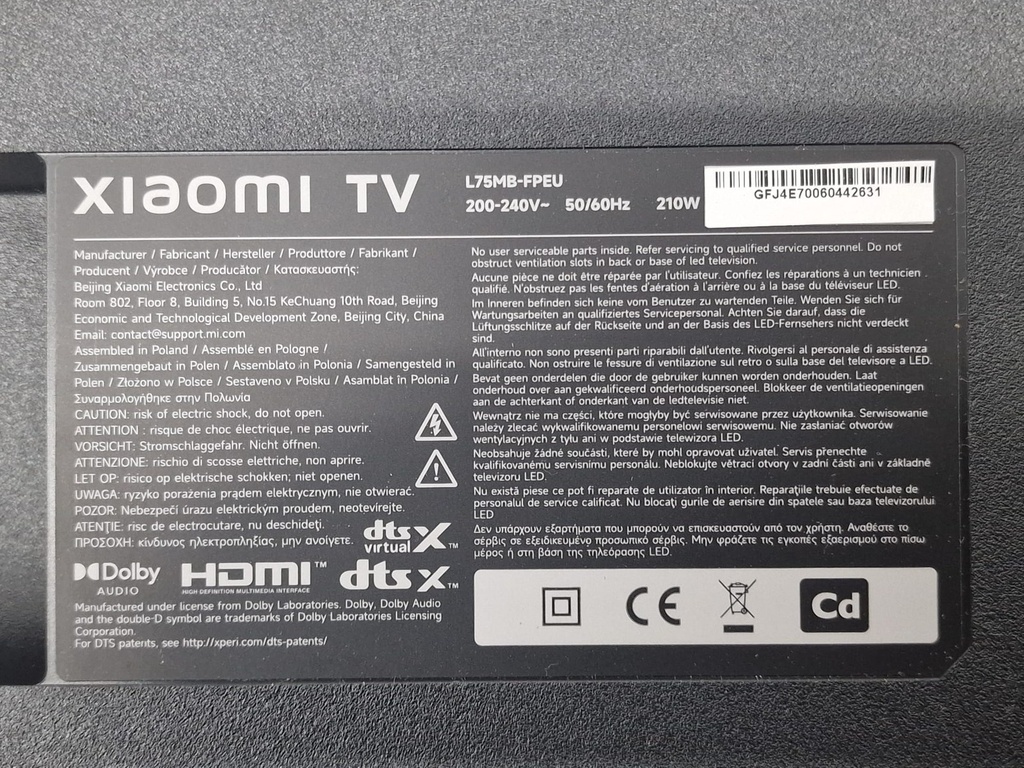

Extracted fromXiaomi TV L75MB-FPEU (75", 210 W, assembled in Poland) · NEW TV with protective plastics, panel broken in transit — the electronics were not involved in the fault · S/N GFJ4E70060442631
Physical conditionGRADE A — ZERO HOURS OF USE. TESTED AND WORKING: the donor TV was powered on and verified working correctly before extraction — only the panel was broken by the impact in transit. 100% functional part
✓ COMPATIBILITY

For Xiaomi TV L75MB-FPEU and other TVs fitted with this same board. Compare the silkscreen marking TD.MT9603.797 and sub-reference 02-MA000000105M-A with those on your board, or contact us via the eBay messaging system stating your TV model and version and we will confirm compatibility.

📦 24/48H SHIPPING
Anti-static packaging
and protected rigid box		 🛡 WARRANTY
Physically verified part
Returns accepted		 🧾 INVOICE
Spanish company
VAT included
MULTiTECH · Marbella, Málaga (Spain) · Genuine spare parts from leading brands
🛠️ MULTITECH DIAGNOSTIC BENCH — find the culprit in 3 steps

STEP 1 — The torch test 🔦 (the one that separates a smart purchase from a return): in the dark, switch the TV on and hold a torch right up against the screen. Can you make out an image? The panel and the main board work: your problem is the backlight (LED strips, driver or the backlight stage of the power supply). No trace of an image? Keep reading.

STEP 2 — Standby light and ear 👂: is the standby LED steady, blinking or dead? Can you hear relay clicks or channel audio? Each combination points to a different suspect in the table.

STEP 3 — Find your symptom:

What your TV doesSuspect no. 1Also check
Completely dead, standby LED offPower supplyfuse, mains cable
Standby LED blinks, won't startPower supplymain board
Turns on and shuts off immediatelyPower supply (protection)main board, shorted LED strips
Sound OK, image visible only with a torchLED stripsLED driver, power supply backlight stage
Sound OK, pitch black even with a torchMain board (video circuit)T-CON, LVDS flex
Dark areas or uneven brightness by zonesLED stripsLED driver
Vertical lines or half screenT-CONpoorly seated LVDS flex
Odd colours or negative imageT-CON (gamma)LVDS flex
Poor sound: distorted, rattling or one channel silentSpeakersmain board (audio stage)
Can't find WiFi networks or Bluetooth won't pair (Magic Remote, headphones)WiFi/BT modulemodule flex cable, main board
Frozen image, artefacts, no response to the remoteMain boardfirmware
Thin horizontal lines⚠️ usually the panel (COF flex)ask us before buying

💬 Unsure about your diagnosis? Message us BEFORE buying with your TV's full model number and the symptom: we'll tell you which part you need, no obligation — we'd rather advise you for free than process a return. And if the part still doesn't fix your fault, you have 30 days to return it and get your money back (return postage paid by the buyer).
