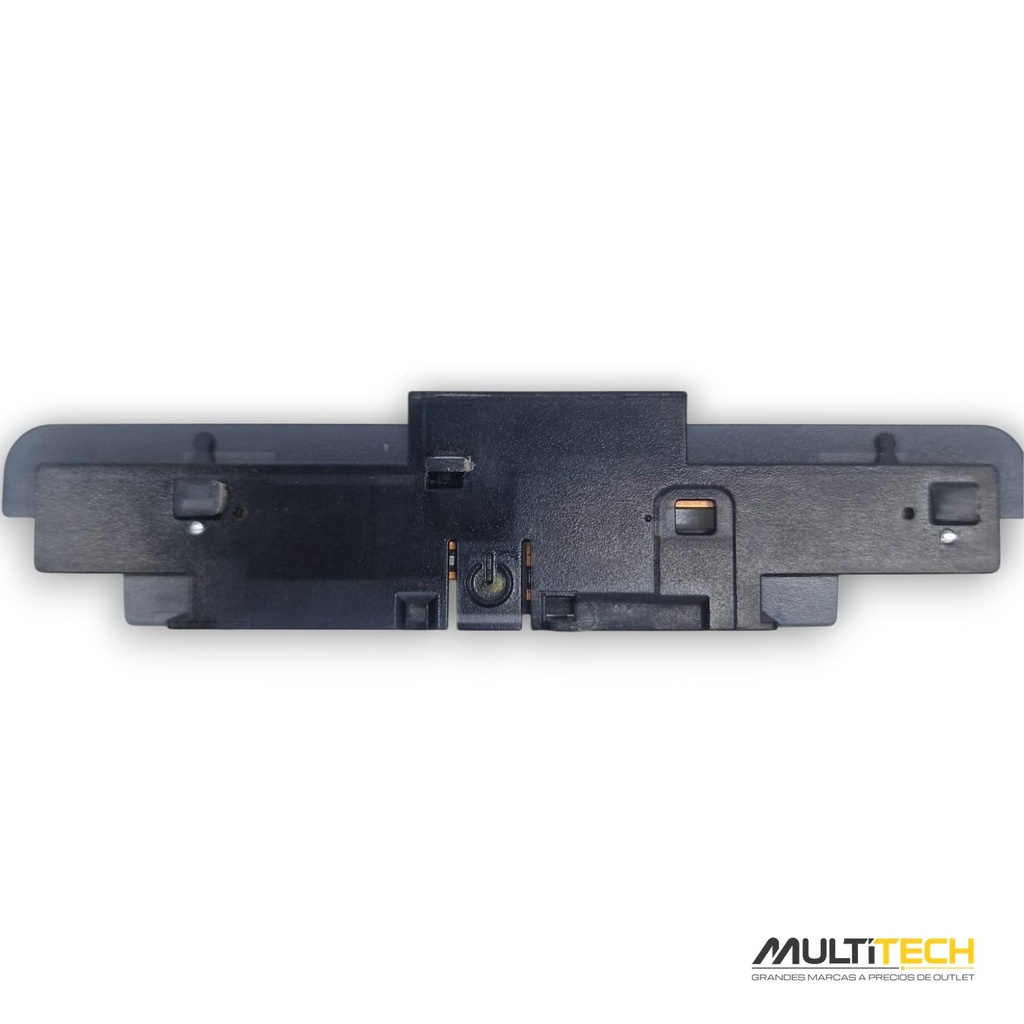

WiFi / Bluetooth Module Samsung WCD730M — BN59-01461A · on bracket with IR sensor

Wi-Fi/BT Transceiver DC 5V · assembly in original bracket with IR sensor and button · GRADE A, ZERO HOURS OF USE

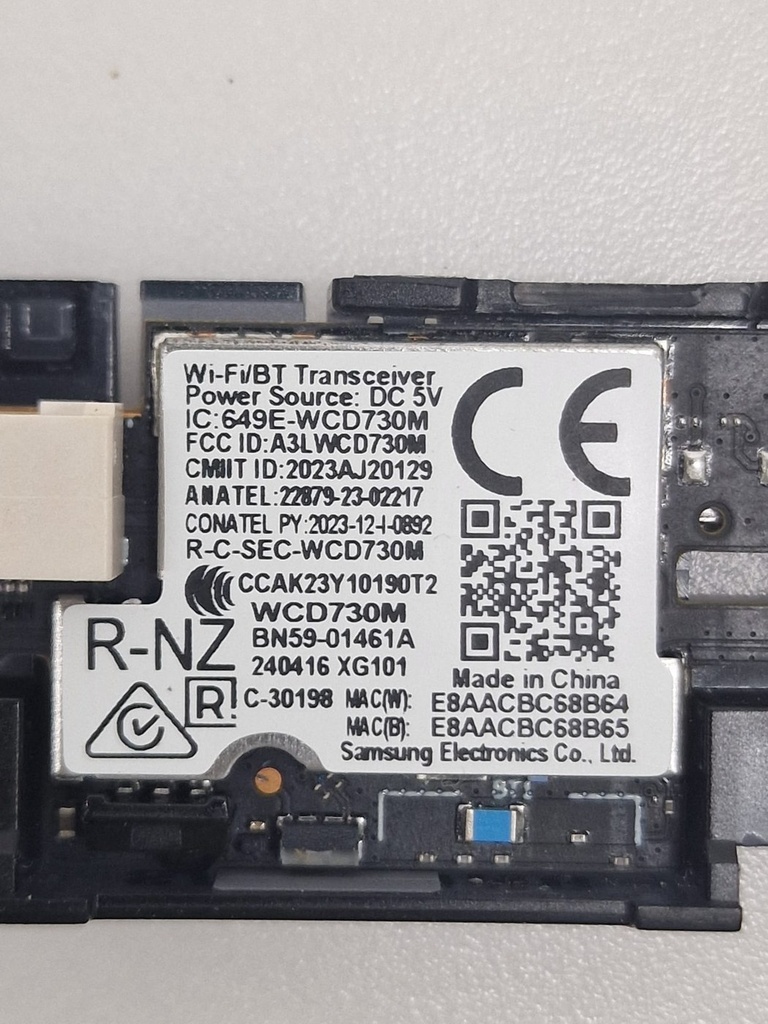

P/NBN59-01461A · model WCD730M · FCC ID A3LWCD730M · batch 20251107 XG201 (see label photo)

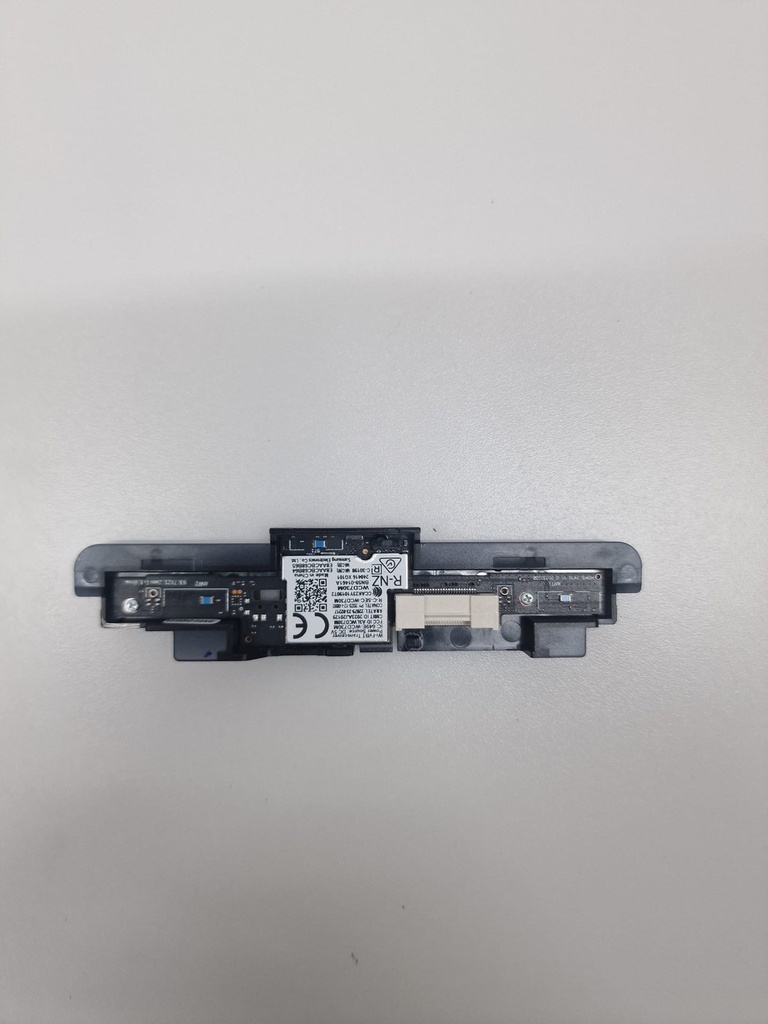

ContentsWiFi/BT module WCD730M (BN59-01461A) mounted on its original bracket + IR sensor board with button · direct installation without handling the electronics

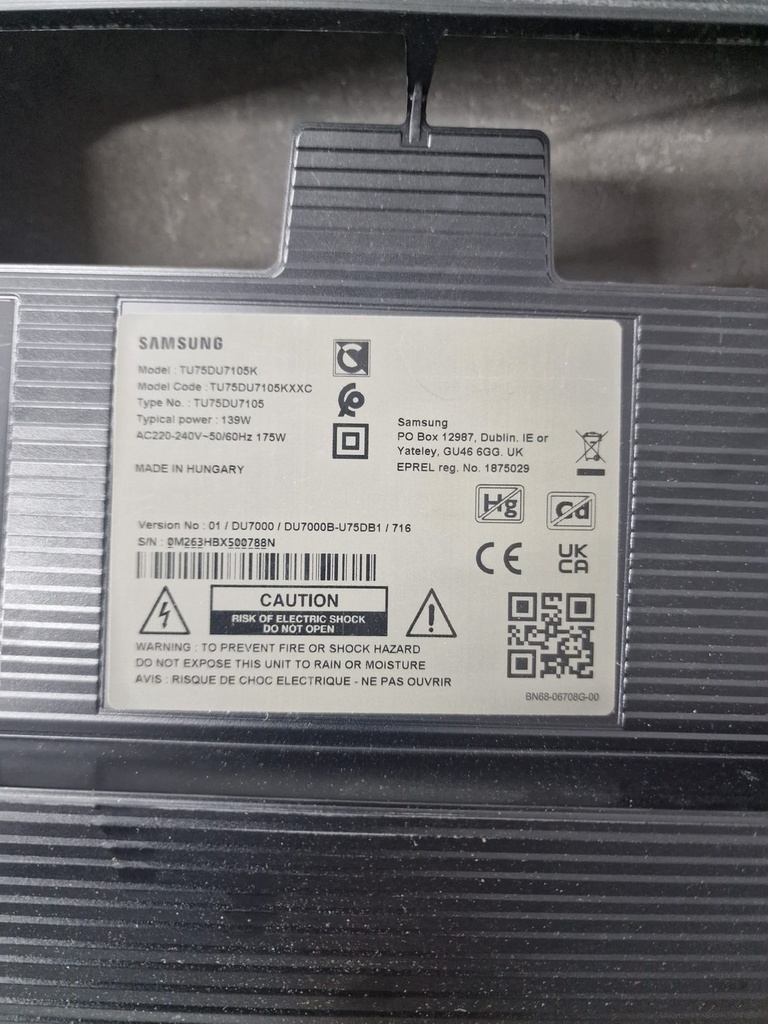

Extracted fromSamsung TU75DU7105K (TU75DU7105KXXC, DU7000B-U75DB1) · 75", 139 W, made in Hungary · NEW TV with protective plastics, panel broken in transit — the electronics played no part in the fault · S/N 0M263HBX500788N
ConditionGRADE A — ZERO HOURS OF USE. TESTED AND WORKING: the donor TV was powered on and verified working correctly before extraction — only the panel was broken by the impact in transit. 100% functional part · Factory solder joints intact
✓ COMPATIBILITY AND SYMPTOMS

Module WCD730M / BN59-01461A fitted in this Samsung TU75DU7105K (DU7000, 75"), in its original bracket together with the IR sensor and button. Verify the P/N of the module in your TV before purchasing. Typical symptoms: TV with no WiFi or no Bluetooth, networks not appearing, voice remote unresponsive; if the sensor fails, TV not responding to the remote. If in doubt, message us through the messaging system with your TV's full model number and we will confirm.

📦 24/48H SHIPPING
Protected in its
original bracket
🛡 WARRANTY
Verified part
Returns accepted
🧾 INVOICE
Spanish company
VAT included
MULTiTECH · Marbella, Málaga (Spain) · Genuine spare parts from leading brands
🛠️ MULTITECH DIAGNOSTIC BENCH — find the culprit in 3 steps

STEP 1 — The torch test 🔦 (the one that separates a smart purchase from a return): in the dark, switch the TV on and hold a torch right up against the screen. Can you make out an image? The panel and the main board work: your problem is the backlight (LED strips, driver or the backlight stage of the power supply). No trace of an image? Keep reading.

STEP 2 — Standby light and ear 👂: is the standby LED steady, blinking or dead? Can you hear relay clicks or channel audio? Each combination points to a different suspect in the table.

STEP 3 — Find your symptom:

What your TV doesSuspect no. 1Also check
Completely dead, standby LED offPower supplyfuse, mains cable
Standby LED blinks, won't startPower supplymain board
Turns on and shuts off immediatelyPower supply (protection)main board, shorted LED strips
Sound OK, image visible only with a torchLED stripsLED driver, power supply backlight stage
Sound OK, pitch black even with a torchMain board (video circuit)T-CON, LVDS flex
Dark areas or uneven brightness by zonesLED stripsLED driver
Vertical lines or half screenT-CONpoorly seated LVDS flex
Odd colours or negative imageT-CON (gamma)LVDS flex
Poor sound: distorted, rattling or one channel silentSpeakersmain board (audio stage)
Can't find WiFi networks or Bluetooth won't pair (Magic Remote, headphones)WiFi/BT modulemodule flex cable, main board
Frozen image, artefacts, no response to the remoteMain boardfirmware
Thin horizontal lines⚠️ usually the panel (COF flex)ask us before buying

💬 Unsure about your diagnosis? Message us BEFORE buying with your TV's full model number and the symptom: we'll tell you which part you need, no obligation — we'd rather advise you for free than process a return. And if the part still doesn't fix your fault, you have 30 days to return it and get your money back (return postage paid by the buyer).
