Samsung BN59-01474A WIC212S WiFi and Bluetooth module for the TQ75QN74FAT QN74F Neo QLED TV

Price:

19.95 €
24/72h shipping in mainland Spain | Warranty on all stock | Top brands at outlet prices
951 20 72 22 WhatsApp
English
Categories

Appliances

Picture and sound

TV spare parts

  2. Shop
  3. Samsung BN59-01474A WIC212S WiFi and Bluetooth module for the TQ75QN74FAT QN74F Neo QLED TV
Samsung BN96-60963A Flex Main Cable for TQ75QN74FAT QN74F Neo QLED 75 TV – Genuine
Samsung BN96-60963A Flex Main Cable for TQ75QN74FAT QN74F Neo QLED 75 TV – Genuine
14.95 €
14.95 €
Genuine Samsung BN96-60623B Speakers (Pair, L/R), 6 Ohms, 10W, for TV models TQ75QN74FAT and QN74F
Genuine Samsung BN96-60623B Speakers (Pair, L/R), 6 Ohms, 10W, for TV models TQ75QN74FAT and QN74F
19.95 €
19.95 €

Samsung BN59-01474A WIC212S WiFi and Bluetooth module for the TQ75QN74FAT QN74F Neo QLED TV

https://multitech.es/web/image/product.template/292/image_1920?unique=de46a8d

19.95 € 19.95 EUR
19.95 €

Compartir

Not Available For Sale

This combination does not exist.

Ask us for real photosOn WhatsApp, before you buy
30-day returnsIf it doesn't fit, send it back
Come and see itSan Pedro de Alcántara (Marbella)
24/72h shippingInsurance included
Envio: Correos Express Envio: InPost Locker Envío: Repuesto pequeño
Contact Us
Tags
MULTITECH
🇪🇸 Spanish seller · Shipped from Spain in 24/48h · VAT invoice

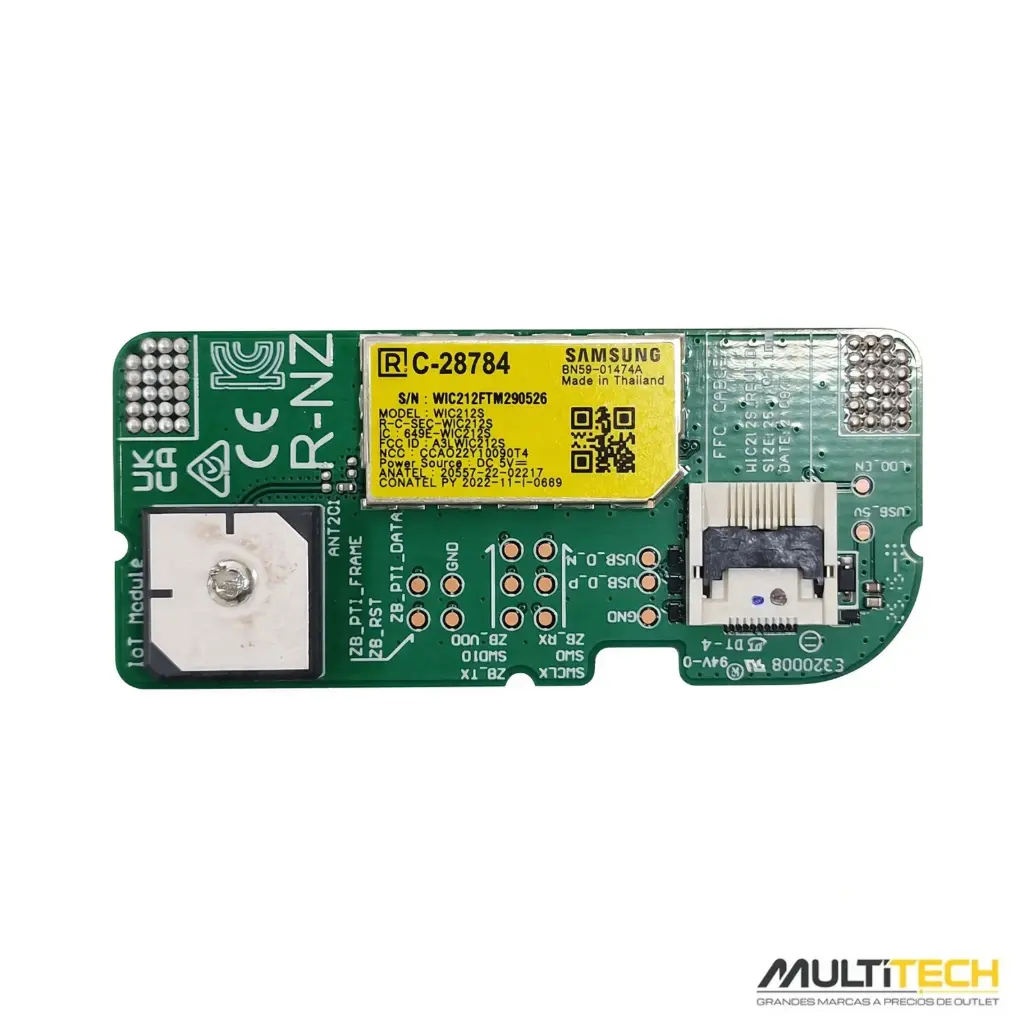

WiFi / Bluetooth Module Samsung WIC212S — BN59-01474A

Wi-Fi/BT Transceiver DC 5V · Samsung Electronics · Made in Thailand · GRADE A ZERO HOURS OF USE

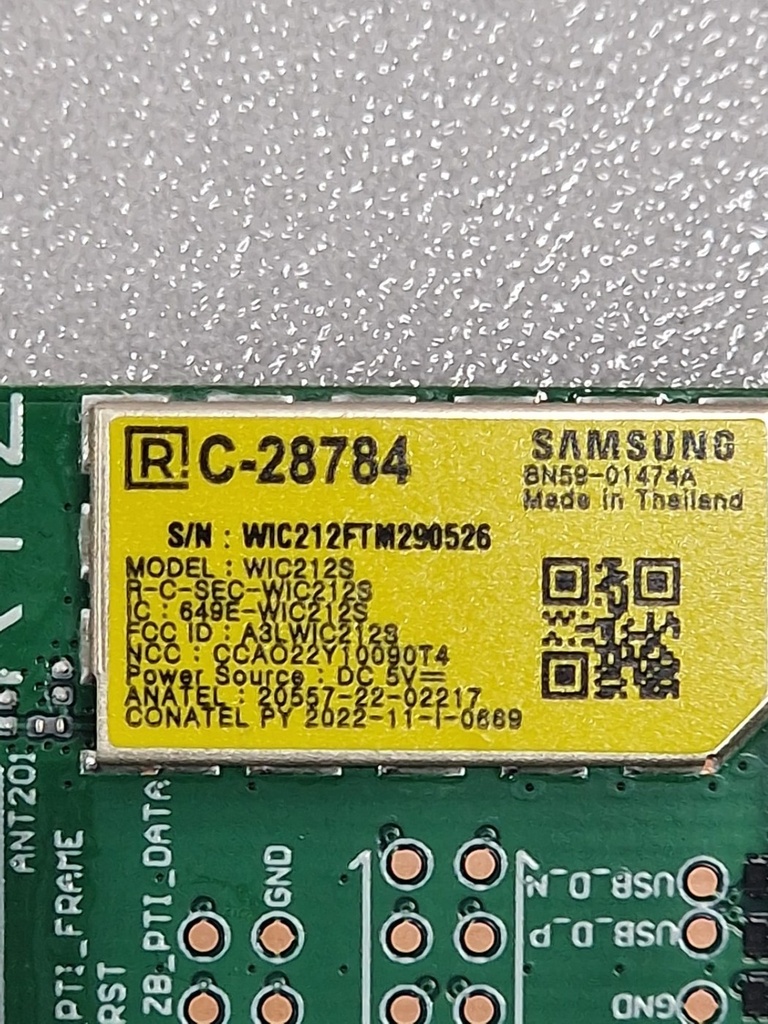

P/NBN59-01474A · model WIC212S · FCC ID A3LWIC212S · IC 649E-WIC212S · S/N WIC212FTM290526 (see label photo)

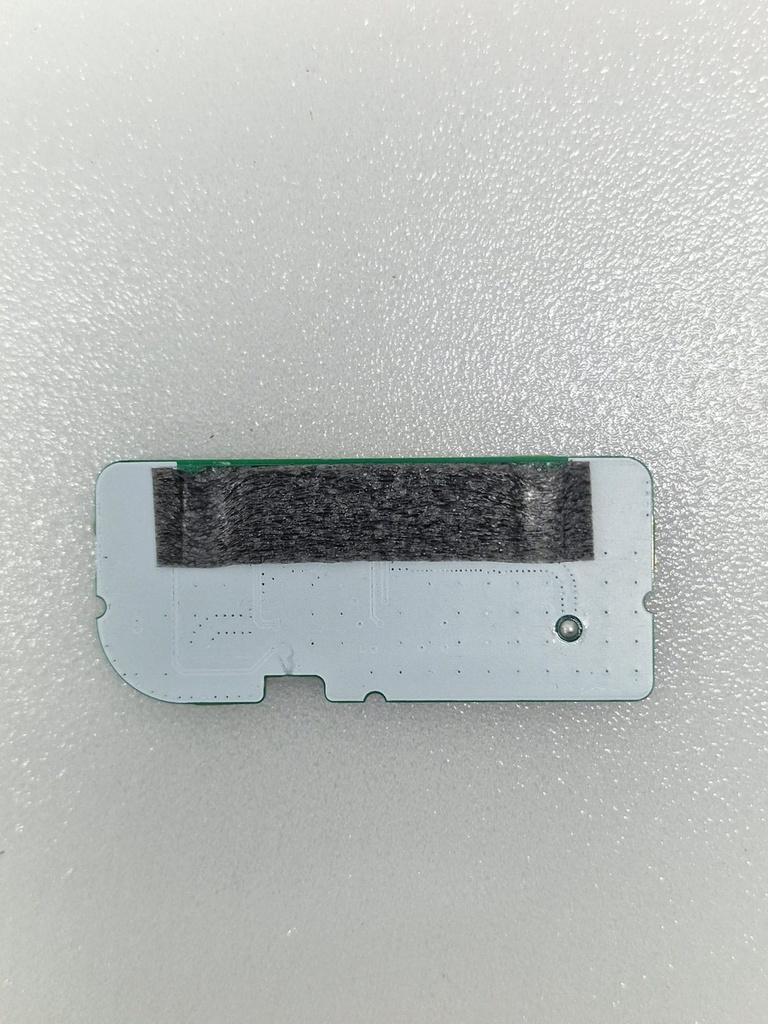

ContentsComplete WiFi/BT module exactly as extracted from the TV, with its original shielding and thermal adhesive (see photos of both sides)

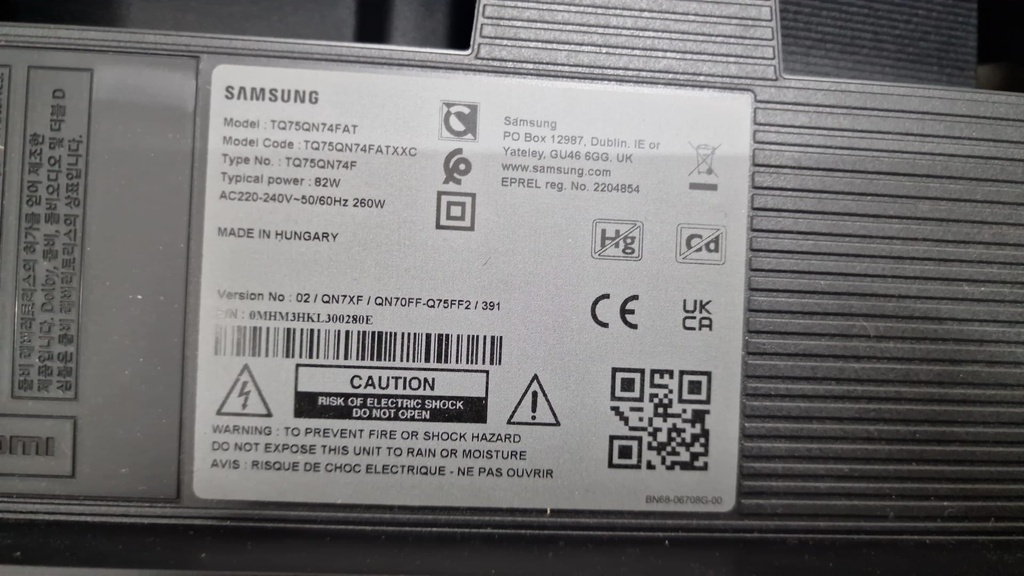

Extracted fromSamsung TQ75QN74FAT (Neo QLED QN74F 75", version 02, made in Hungary) NEW with panel broken in transit · S/N 0MHM3HKL300280E
ConditionGRADE A — ZERO HOURS OF USE
✓ COMPATIBILITY AND SYMPTOMS

Samsung module fitted in the QN74F Neo QLED 75" 2025 (TQ75QN74FAT, model code TQ75QN74FATXXC). Verify the P/N BN59-01474A / WIC212S of your TV's module before purchasing. Typical symptoms of a faulty module: the TV does not detect WiFi networks, cannot find Bluetooth devices, or the voice remote fails to pair. If in doubt, message us via the eBay messaging system stating your TV model and we will confirm compatibility.

📦 24/48H SHIPPING
Protected in its
original bracket		 🛡 WARRANTY
Verified part
Returns accepted		 🧾 INVOICE
Spanish company
VAT included
MULTiTECH · Marbella, Málaga (Spain) · Genuine spare parts from leading brands
🛠️ MULTITECH DIAGNOSTIC BENCH — find the culprit in 3 steps

STEP 1 — The torch test 🔦 (the one that separates a smart purchase from a return): in the dark, switch the TV on and hold a torch right up against the screen. Can you make out an image? The panel and the main board work: your problem is the backlight (LED strips, driver or the backlight stage of the power supply). No trace of an image? Keep reading.

STEP 2 — Standby light and ear 👂: is the standby LED steady, blinking or dead? Can you hear relay clicks or channel audio? Each combination points to a different suspect in the table.

STEP 3 — Find your symptom:

What your TV doesSuspect no. 1Also check
Completely dead, standby LED offPower supplyfuse, mains cable
Standby LED blinks, won't startPower supplymain board
Turns on and shuts off immediatelyPower supply (protection)main board, shorted LED strips
Sound OK, image visible only with a torchLED stripsLED driver, power supply backlight stage
Sound OK, pitch black even with a torchMain board (video circuit)T-CON, LVDS flex
Dark areas or uneven brightness by zonesLED stripsLED driver
Vertical lines or half screenT-CONpoorly seated LVDS flex
Odd colours or negative imageT-CON (gamma)LVDS flex
Poor sound: distorted, rattling or one channel silentSpeakersmain board (audio stage)
Can't find WiFi networks or Bluetooth won't pair (Magic Remote, headphones)WiFi/BT modulemodule flex cable, main board
Frozen image, artefacts, no response to the remoteMain boardfirmware
Thin horizontal lines⚠️ usually the panel (COF flex)ask us before buying

💬 Unsure about your diagnosis? Message us BEFORE buying with your TV's full model number and the symptom: we'll tell you which part you need, no obligation — we'd rather advise you for free than process a return. And if the part still doesn't fix your fault, you have 30 days to return it and get your money back (return postage paid by the buyer).
