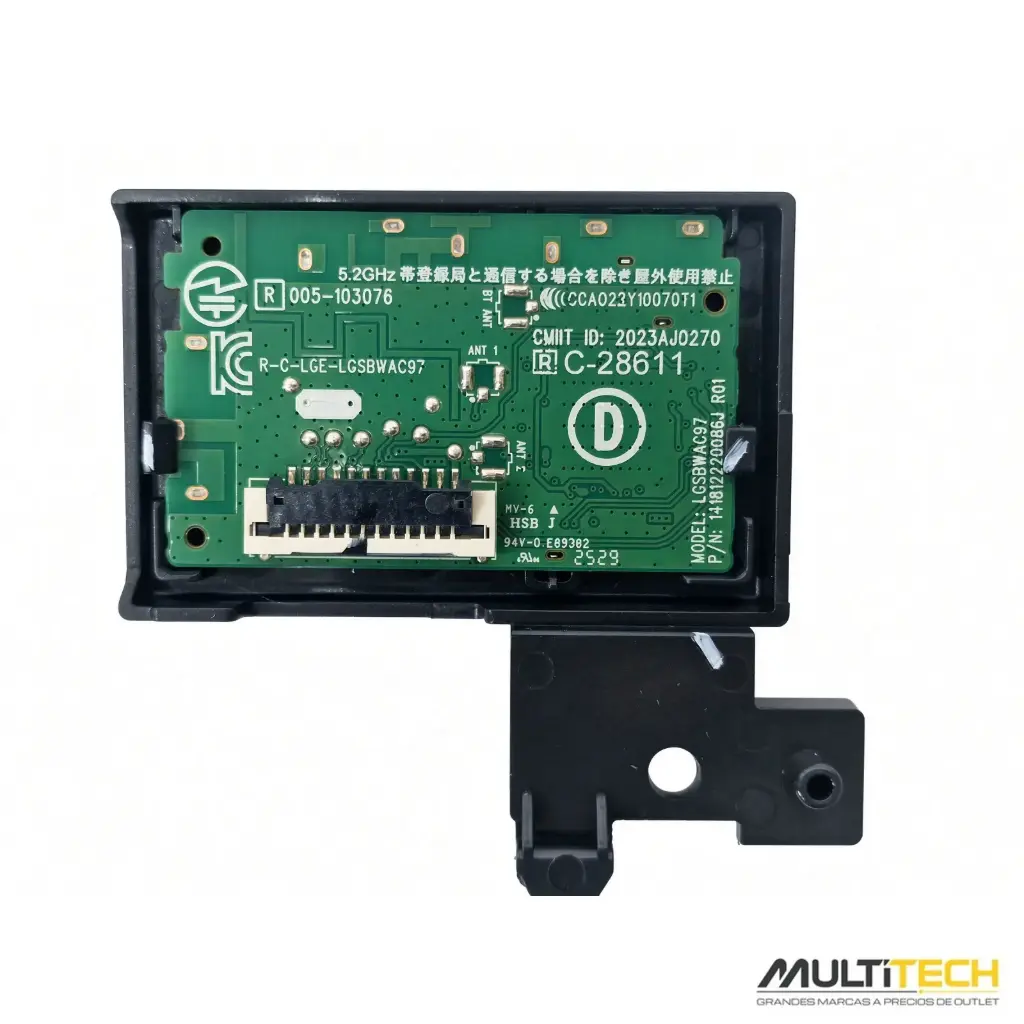

WiFi/Bluetooth Module LG EAT65193304 + original bracket

Module with antennas + original NANO80 bracket · Unused

TypeWiFi/BT dual module + original mounting bracket from a 55" NanoCell TV with anchoring tabs

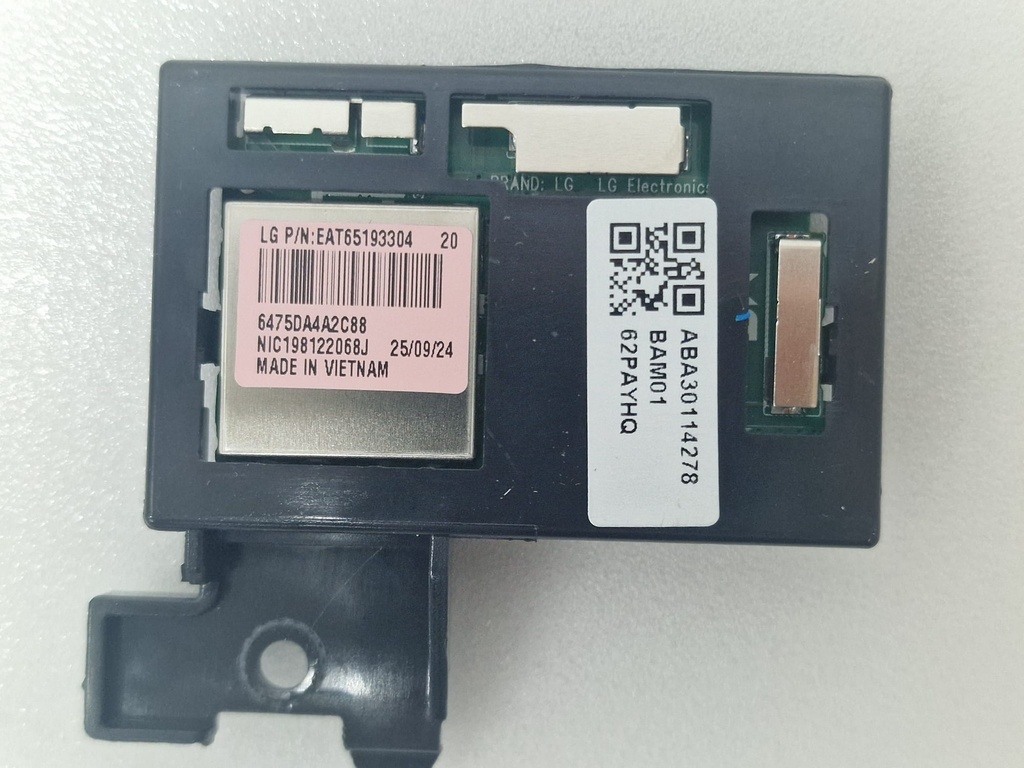

ReferenceLG P/N EAT65193304 · MAC 6475DA4A2C88 · NIC198122068J · mfd. in Vietnam 25/09/24 (verify the EAT reference on your label)

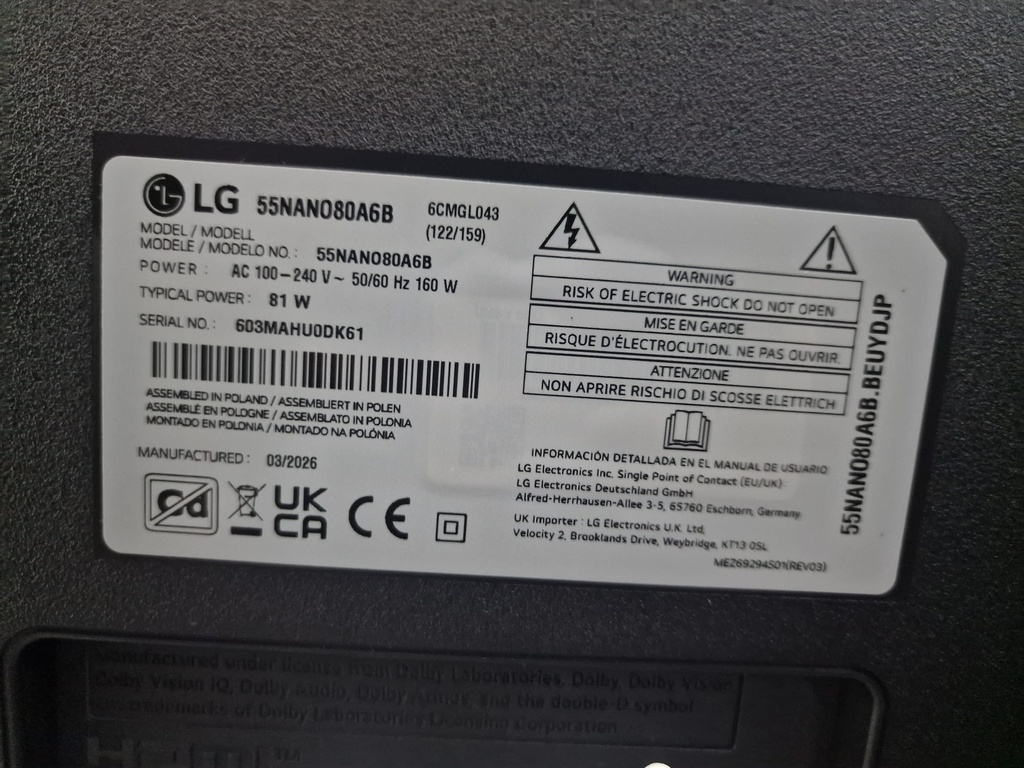

Extracted fromLG 55NANO80A6B (NanoCell 55" 2026) new with damaged panel · mfd. 03/2026 · S/N 603MAHU0DK61
ConditionGRADE A — UNUSED: module and antennas immaculate, FFC connector perfect, bracket unmarked
✓ WHEN YOU NEED IT

TV that cannot find WiFi networks, networks that keep disappearing, or Bluetooth that won't pair with the Magic remote or headphones: these are the classic symptoms of a faulty RF module, and this spare part fixes it in 10 minutes. COMPATIBILITY: by removing the bracket, the module fits any LG TV that uses this same part number EAT65193304; the bracket included is specific to the model shown in the photos. Supplied mounted on its original bracket: this protects the part during shipping and, if your TV is the model listed in this advert, the swap is straightforward — no need to unclip the board or risk damaging it during handling. Compare the EAT reference on your label before purchasing.

📦 24/48H SHIPPING
Flat and protected
with tracking		 🛡 WARRANTY
Verified part
Returns accepted		 🧾 INVOICE
Spanish company
VAT included
MULTiTECH · Marbella, Málaga (Spain) · Genuine spare parts from leading brands
🛠️ MULTITECH DIAGNOSTIC BENCH — find the culprit in 3 steps

STEP 1 — The torch test 🔦 (the one that separates a smart purchase from a return): in the dark, switch the TV on and hold a torch right up against the screen. Can you make out an image? The panel and the main board work: your problem is the backlight (LED strips, driver or the backlight stage of the power supply). No trace of an image? Keep reading.

STEP 2 — Standby light and ear 👂: is the standby LED steady, blinking or dead? Can you hear relay clicks or channel audio? Each combination points to a different suspect in the table.

STEP 3 — Find your symptom:

What your TV doesSuspect no. 1Also check
Completely dead, standby LED offPower supplyfuse, mains cable
Standby LED blinks, won't startPower supplymain board
Turns on and shuts off immediatelyPower supply (protection)main board, shorted LED strips
Sound OK, image visible only with a torchLED stripsLED driver, power supply backlight stage
Sound OK, pitch black even with a torchMain board (video circuit)T-CON, LVDS flex
Dark areas or uneven brightness by zonesLED stripsLED driver
Vertical lines or half screenT-CONpoorly seated LVDS flex
Odd colours or negative imageT-CON (gamma)LVDS flex
Poor sound: distorted, rattling or one channel silentSpeakersmain board (audio stage)
Can't find WiFi networks or Bluetooth won't pair (Magic Remote, headphones)WiFi/BT modulemodule flex cable, main board
Frozen image, artefacts, no response to the remoteMain boardfirmware
Thin horizontal lines⚠️ usually the panel (COF flex)ask us before buying

💬 Unsure about your diagnosis? Message us BEFORE buying with your TV's full model number and the symptom: we'll tell you which part you need, no obligation — we'd rather advise you for free than process a return. And if the part still doesn't fix your fault, you have 30 days to return it and get your money back (return postage paid by the buyer).
