Flex cable for main board Samsung BN96-60744A — TQ75QN74FAT (QN74F Neo QLED 75", 2025)

Marked MAIN REV.00 · batch BG2601231CB7 · Grade A with zero hours of use

P/NBN96-60744A · marked MAIN REV.00 · batch BG2601231CB7 · AWM 20941 90V 105C VW-1 (see photo)

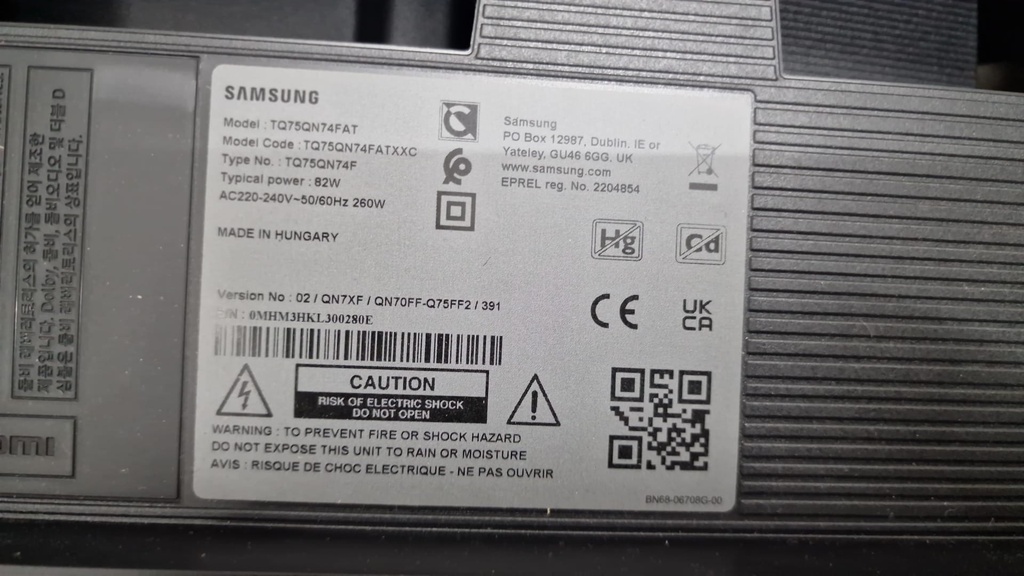

Extracted fromSamsung TQ75QN74FAT (Neo QLED QN74F 75", version 02, made in Hungary) NEW with panel broken in transit · S/N 0MHM3HKL300280E
ConditionGRADE A — ZERO HOURS OF USE: factory contacts and film intact
✓ COMPATIBILITY AND SYMPTOMS

Extracted from the Samsung QN74F Neo QLED 75" 2025 (TQ75QN74FAT, model code TQ75QN74FATXXC). Check the P/N printed on your cable before buying: with FFC flex cables, a single different digit means it won't fit. Typical symptoms of a damaged or poorly seated FFC: intermittent failure of the function it connects, dropouts when the chassis is moved, or a connector with burnt contacts. If in doubt, message us via the eBay messaging system with your TV model and we'll confirm compatibility.

📦 24/48H SHIPPING
Padded envelope with
rigid sandwich, shipped flat		 🛡 WARRANTY
Verified part
Returns accepted		 🧾 INVOICE
Spanish company
VAT included
MULTiTECH · Marbella, Málaga (Spain) · Genuine spare parts from leading brands
🛠️ MULTITECH DIAGNOSTIC BENCH — find the culprit in 3 steps

STEP 1 — The torch test 🔦 (the one that separates a smart purchase from a return): in the dark, switch the TV on and hold a torch right up against the screen. Can you make out an image? The panel and the main board work: your problem is the backlight (LED strips, driver or the backlight stage of the power supply). No trace of an image? Keep reading.

STEP 2 — Standby light and ear 👂: is the standby LED steady, blinking or dead? Can you hear relay clicks or channel audio? Each combination points to a different suspect in the table.

STEP 3 — Find your symptom:

What your TV doesSuspect no. 1Also check
Completely dead, standby LED offPower supplyfuse, mains cable
Standby LED blinks, won't startPower supplymain board
Turns on and shuts off immediatelyPower supply (protection)main board, shorted LED strips
Sound OK, image visible only with a torchLED stripsLED driver, power supply backlight stage
Sound OK, pitch black even with a torchMain board (video circuit)T-CON, LVDS flex
Dark areas or uneven brightness by zonesLED stripsLED driver
Vertical lines or half screenT-CONpoorly seated LVDS flex
Odd colours or negative imageT-CON (gamma)LVDS flex
Poor sound: distorted, rattling or one channel silentSpeakersmain board (audio stage)
Can't find WiFi networks or Bluetooth won't pair (Magic Remote, headphones)WiFi/BT modulemodule flex cable, main board
Frozen image, artefacts, no response to the remoteMain boardfirmware
Thin horizontal lines⚠️ usually the panel (COF flex)ask us before buying

💬 Unsure about your diagnosis? Message us BEFORE buying with your TV's full model number and the symptom: we'll tell you which part you need, no obligation — we'd rather advise you for free than process a return. And if the part still doesn't fix your fault, you have 30 days to return it and get your money back (return postage paid by the buyer).
