Samsung QPWBM0008HVZA FPC Flex Cables for TQ75QN74FAT and QN74F Neo QLED TVs (pair)

Price:

14.95 €
24/72h shipping in mainland Spain | Warranty on all stock | Top brands at outlet prices
951 20 72 22 WhatsApp
English
Categories

Appliances

Picture and sound

TV spare parts

  2. Shop
  3. Samsung QPWBM0008HVZA FPC Flex Cables for TQ75QN74FAT and QN74F Neo QLED TVs (pair)
Samsung BN96-60744A Flex Main Cable for TQ75QN74FAT QN74F Neo QLED 75 (Genuine)
Samsung BN96-60744A Flex Main Cable for TQ75QN74FAT QN74F Neo QLED 75 (Genuine)
14.95 €
14.95 €
Samsung BN41-03323A Mainboard for TQ75QN74FAT QN74F Neo QLED 75 2025 TV
Samsung BN41-03323A Mainboard for TQ75QN74FAT QN74F Neo QLED 75 2025 TV
99.95 €
99.95 €

Samsung QPWBM0008HVZA FPC Flex Cables for TQ75QN74FAT and QN74F Neo QLED TVs (pair)

https://multitech.es/web/image/product.template/289/image_1920?unique=de46a8d

14.95 € 14.95 EUR
14.95 €

Compartir

Not Available For Sale

This combination does not exist.

Ask us for real photosOn WhatsApp, before you buy
30-day returnsIf it doesn't fit, send it back
Come and see itSan Pedro de Alcántara (Marbella)
24/72h shippingInsurance included
Envio: Correos Express Envio: InPost Locker Envío: Repuesto pequeño
Contact Us
Tags
MULTITECH
🇪🇸 Spanish seller · Shipped from Spain in 24/48h · VAT invoice

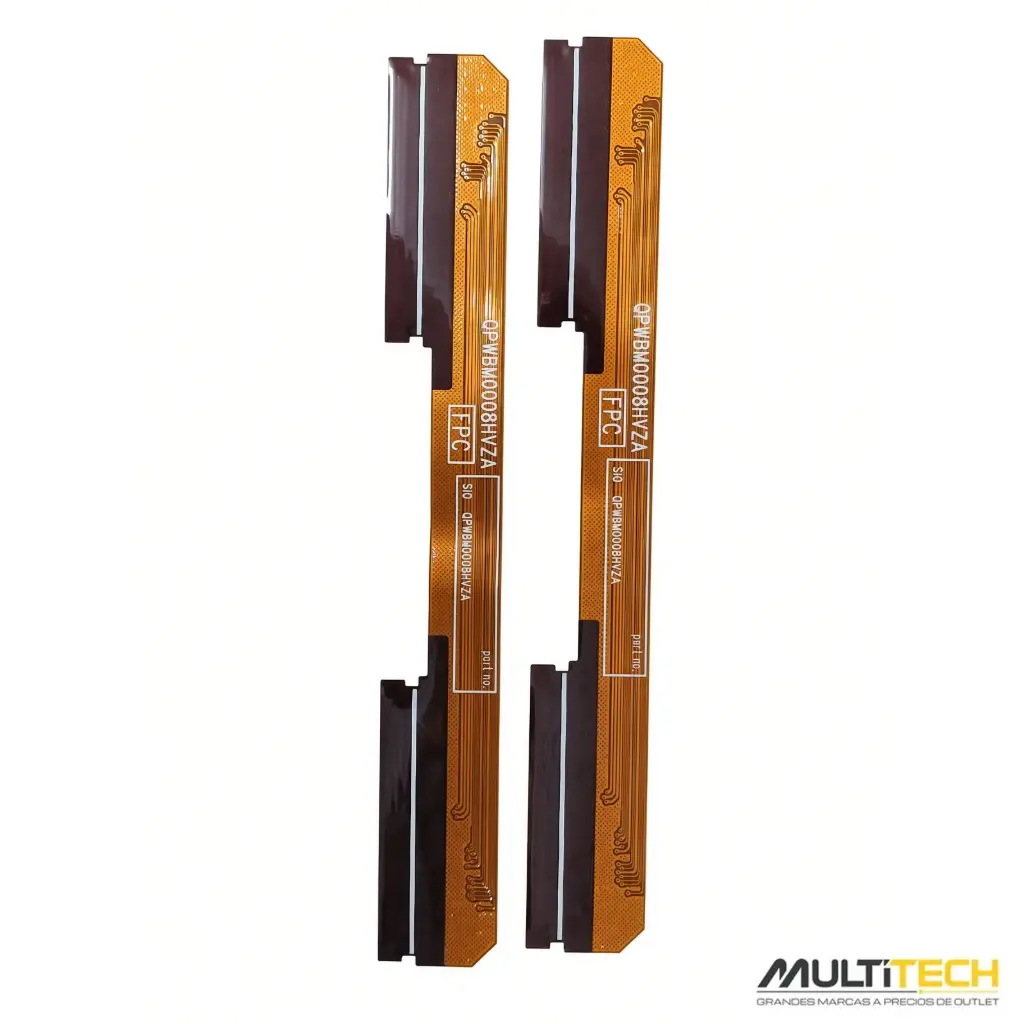

Cables flex FPC del panel — pair (2 pcs) · Samsung QPWBM0008HVZA · TQ75QN74FAT (QN74F Neo QLED 75")

Silkscreen marking QPWBM0008HVZA · marked FPC / SIO · batch 2545 · Grade A zero hours of use

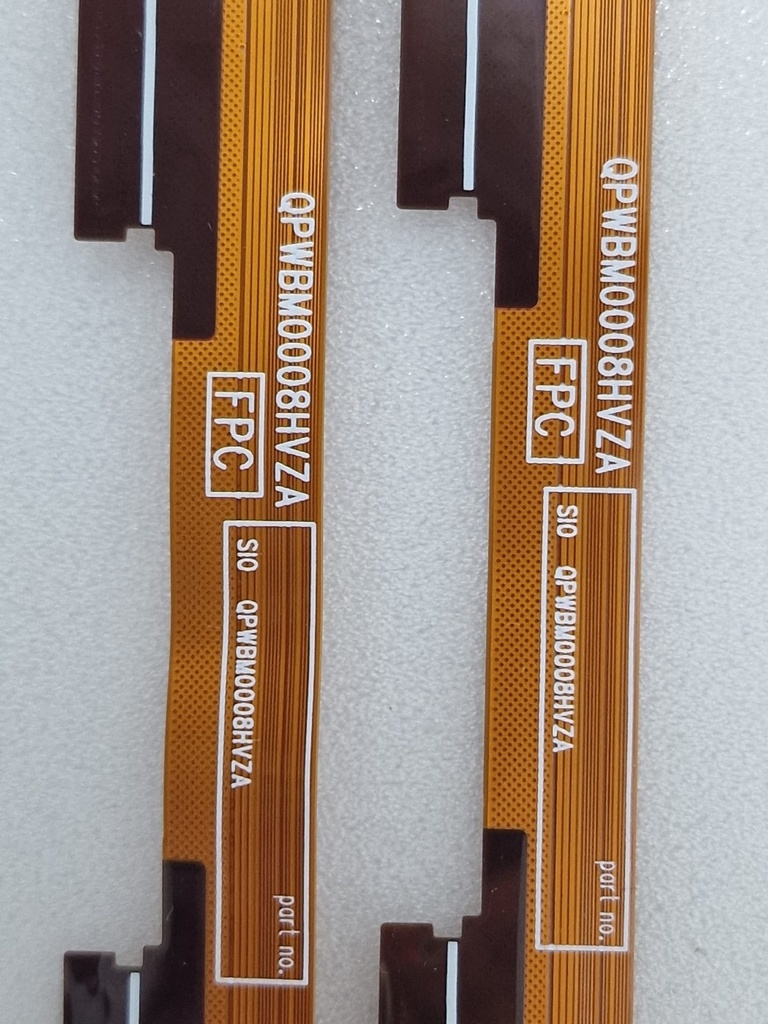

Silkscreen markingQPWBM0008HVZA · silkscreen marked FPC and SIO · UL E216781 TS 94V-0 · YSDS-6 · batch 2545 (see photos)

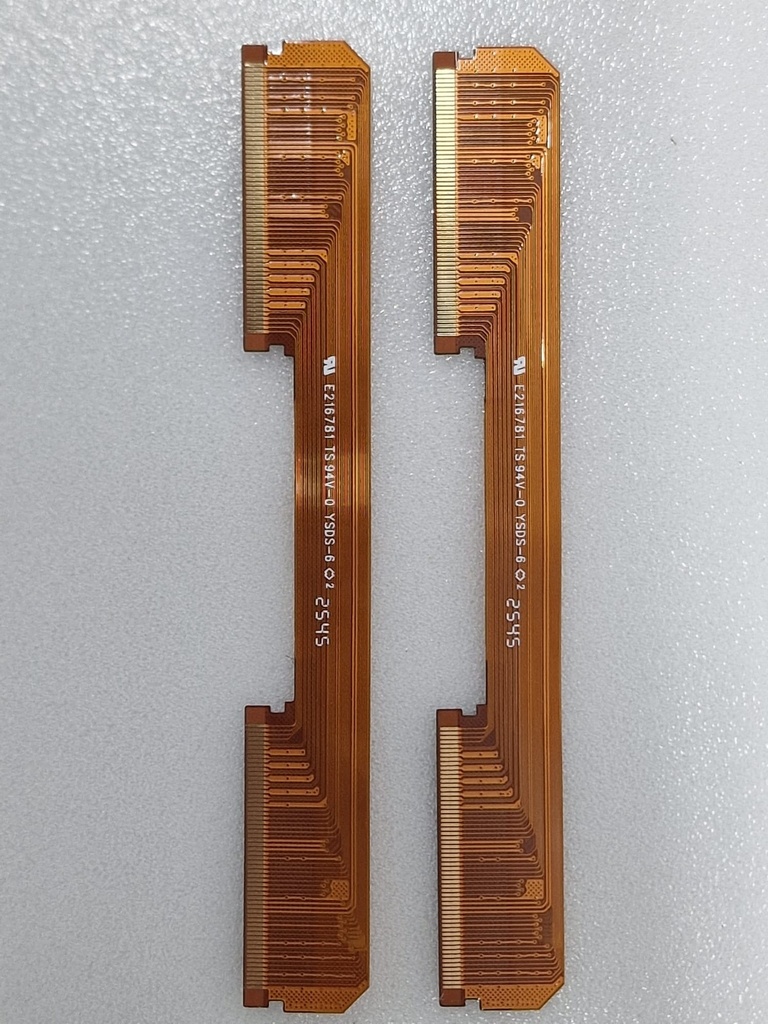

ContentsComplete pair: 2 units — panel interconnect flex cable, intact gold contacts

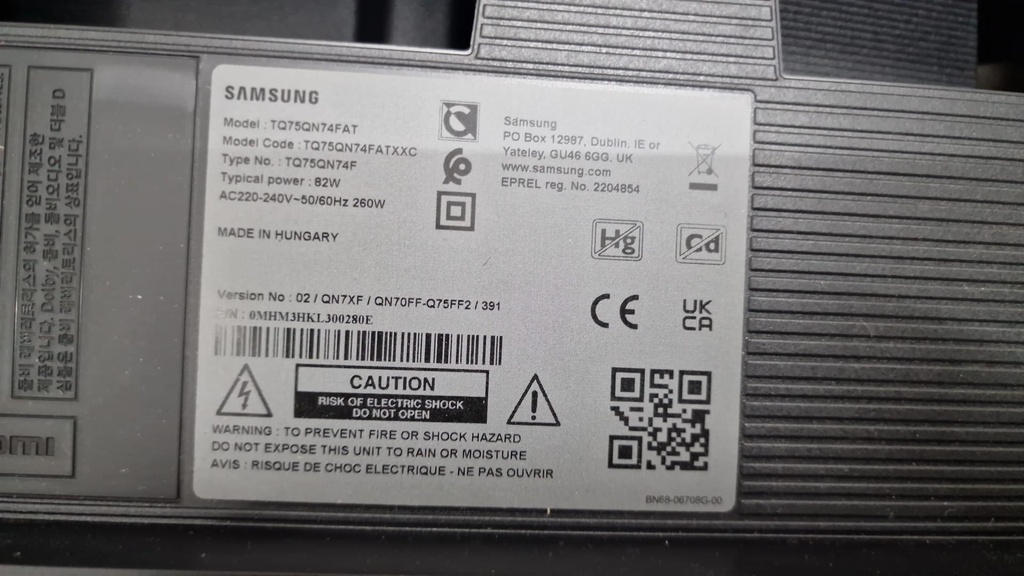

Extracted fromSamsung TQ75QN74FAT (Neo QLED QN74F 75", version 02, made in Hungary) NEW with panel broken in transit · S/N 0MHM3HKL300280E
ConditionGRADE A — ZERO HOURS OF USE: gold contacts and factory film intact (see photos)
✓ COMPATIBILITY AND SYMPTOMS

Panel interconnect flex cable for the Samsung QN74F Neo QLED 75" 2025 (TQ75QN74FAT, model code TQ75QN74FATXXC). Check the silkscreen marking QPWBM0008HVZA on your flex cable before purchasing: even a single different digit means it will not be compatible. Typical symptoms of a damaged panel flex cable: vertical lines, half the screen, flickering or intermittent image. If in doubt, message us via the eBay messaging system stating your TV model and we will confirm compatibility.

📦 24/48H SHIPPING
Padded envelope with
rigid sandwich, shipped flat		 🛡 WARRANTY
Verified part
Returns accepted		 🧾 INVOICE
Spanish company
VAT included
MULTiTECH · Marbella, Málaga (Spain) · Genuine spare parts from leading brands
🛠️ MULTITECH DIAGNOSTIC BENCH — find the culprit in 3 steps

STEP 1 — The torch test 🔦 (the one that separates a smart purchase from a return): in the dark, switch the TV on and hold a torch right up against the screen. Can you make out an image? The panel and the main board work: your problem is the backlight (LED strips, driver or the backlight stage of the power supply). No trace of an image? Keep reading.

STEP 2 — Standby light and ear 👂: is the standby LED steady, blinking or dead? Can you hear relay clicks or channel audio? Each combination points to a different suspect in the table.

STEP 3 — Find your symptom:

What your TV doesSuspect no. 1Also check
Completely dead, standby LED offPower supplyfuse, mains cable
Standby LED blinks, won't startPower supplymain board
Turns on and shuts off immediatelyPower supply (protection)main board, shorted LED strips
Sound OK, image visible only with a torchLED stripsLED driver, power supply backlight stage
Sound OK, pitch black even with a torchMain board (video circuit)T-CON, LVDS flex
Dark areas or uneven brightness by zonesLED stripsLED driver
Vertical lines or half screenT-CONpoorly seated LVDS flex
Odd colours or negative imageT-CON (gamma)LVDS flex
Poor sound: distorted, rattling or one channel silentSpeakersmain board (audio stage)
Can't find WiFi networks or Bluetooth won't pair (Magic Remote, headphones)WiFi/BT modulemodule flex cable, main board
Frozen image, artefacts, no response to the remoteMain boardfirmware
Thin horizontal lines⚠️ usually the panel (COF flex)ask us before buying

💬 Unsure about your diagnosis? Message us BEFORE buying with your TV's full model number and the symptom: we'll tell you which part you need, no obligation — we'd rather advise you for free than process a return. And if the part still doesn't fix your fault, you have 30 days to return it and get your money back (return postage paid by the buyer).
